TOYOTA CARINA FR TA63-ACMQZ / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

(8210-8507)3TGTEU

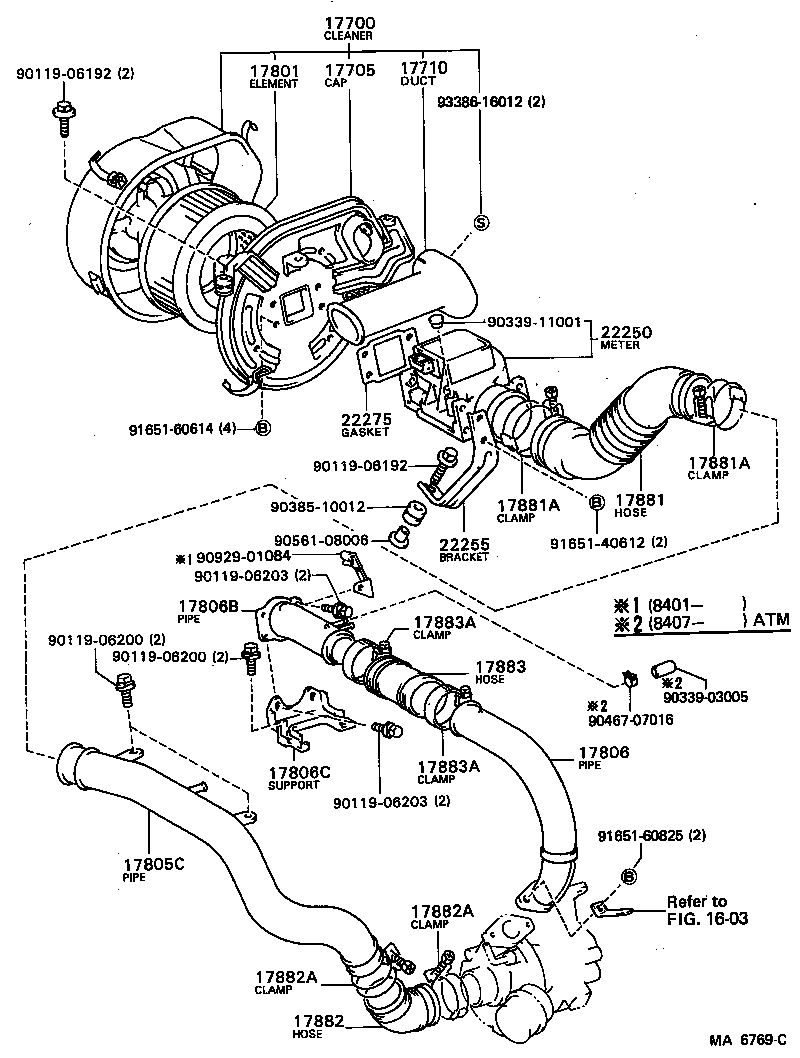

 CARINA FR |  AIR CLEANER ** Refer Fig 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17710 - DUCT SUB-ASSY, AIR CLEANER INLET, NO.1 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 17806B - PIPE SUB-ASSY, AIR CLEANER, NO.3 17806C - SUPPORT, AIR CLEANER PIPE 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17883 - HOSE, AIR CLEANER, NO.3 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 22250 - METER ASSY, INTAKE AIR FLOW 22255 - BRACKET, AIR FLOW METER 22275 - GASKET, AIR FLOW METER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
