TOYOTA CARINA FR TA63-ACMSE / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

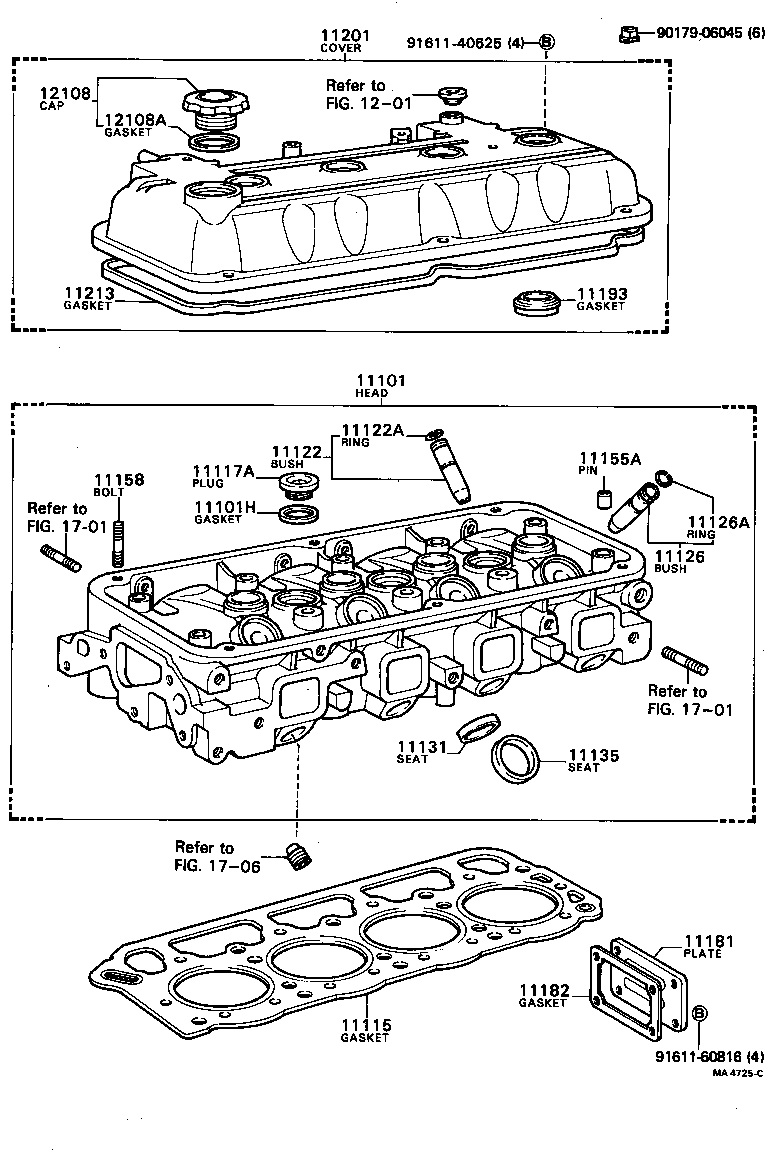

CYLINDER HEAD

(8109-8212)12TJ,3TEU ; (8212-8305)3TEU

CARINA FR | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) 11115 - GASKET, CYLINDER HEAD 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) 11126 - BUSH, EXHAUST VALVE GUIDE 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11155A - PIN, RING W/HEAD 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) 11181 - PLATE, CYLINDER HEAD, REAR 11182 - GASKET, CYLINDER HEAD REAR PLATE 11193 - GASKET, SPARK PLUG TUBE 11201 - COVER SUB-ASSY, CYLINDER HEAD 11213 - GASKET, CYLINDER HEAD COVER ** Refer Fig 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
