TOYOTA CARINA FR TA63-ACPSE / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

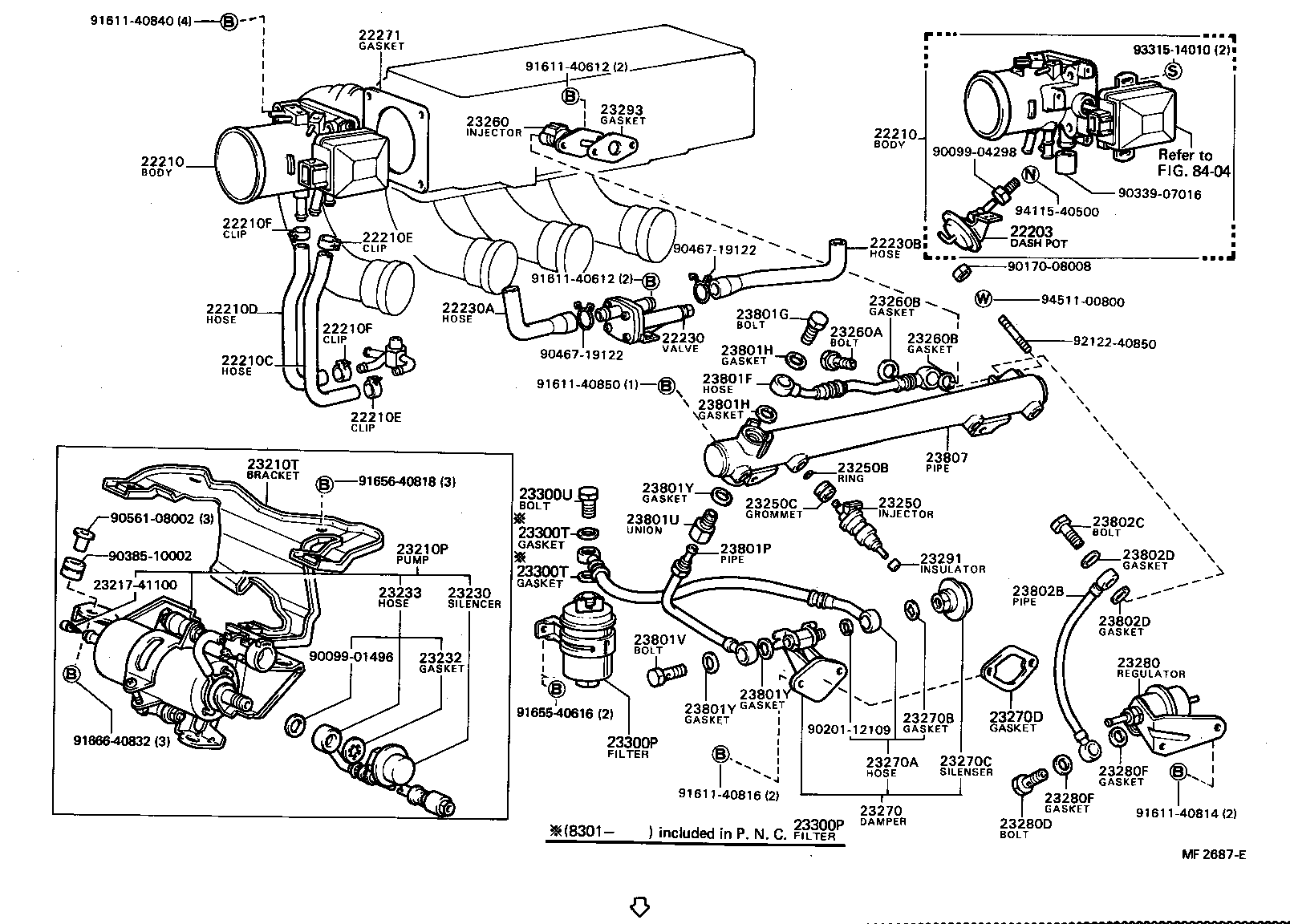

FUEL INJECTION SYSTEM

(8109-8305)3TEU

CARINA FR | FUEL INJECTION SYSTEM 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) 22210 - BODY ASSY, THROTTLE 22210 - BODY ASSY, THROTTLE 22210C - HOSE, WATER BY-PASS, NO.1 22210D - HOSE, WATER BY-PASS, NO.2 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22230 - VALVE ASSY, AUXILIARY AIR 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 22271 - GASKET, THROTTLE BODY 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET 23210T - BRACKET, FUEL PUMP ** Std Part 23230 - SILENCER ASSY 23232 - GASKET(FOR FUEL PUMP HOSE) 23233 - HOSE, FUEL PUMP 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23260 - INJECTOR ASSY, COLD START FUEL 23260A - BOLT, UNION 23260B - GASKET 23260B - GASKET 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270A - HOSE(FOR PULSATION DAMPER) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270C - SILENCER ASSY(FOR PULSATION DAMPER) 23270D - GASKET(FOR PULSATION DAMPER) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23293 - GASKET, COLD START INJECTOR 23300P - FILTER, FUEL(FOR EFI) 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23801U - UNION 23801V - BOLT, UNION 23801Y - GASKET 23801Y - GASKET 23801Y - GASKET 23802B - PIPE SUB-ASSY, FUEL, NO.2 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23807 - PIPE SUB-ASSY, FUEL DELIVERY ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
