TOYOTA CRESTA SX60-YTMNS / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

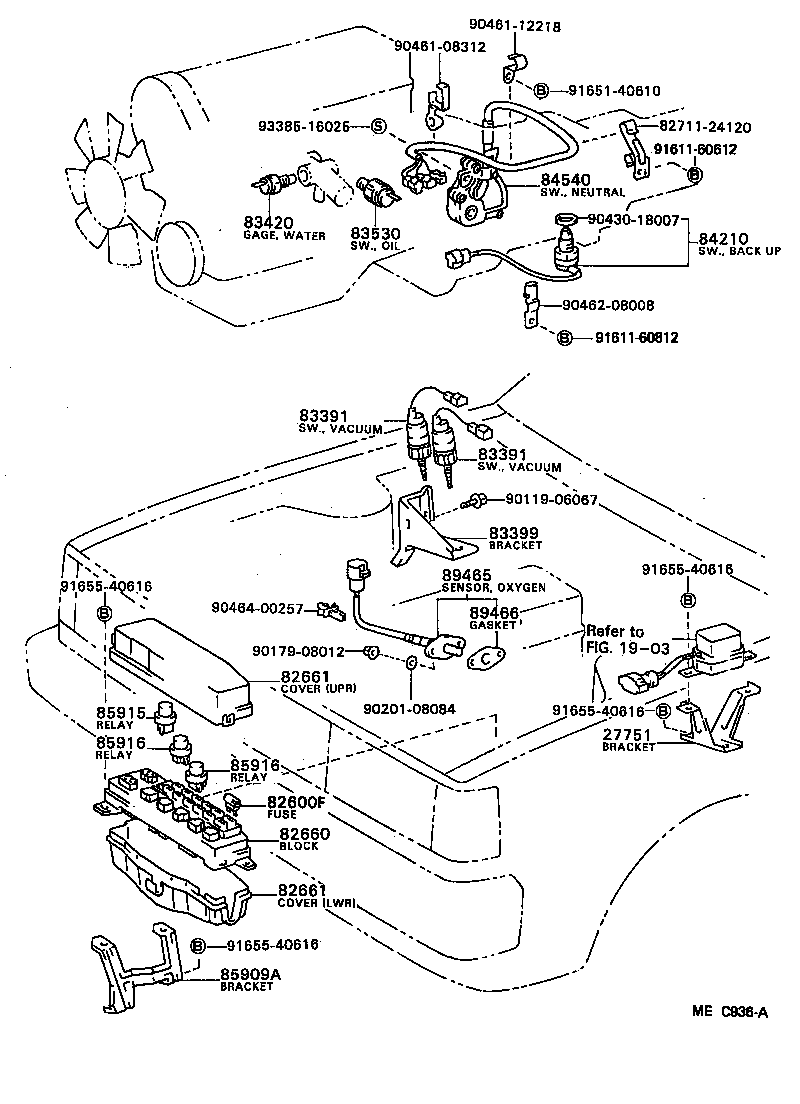

ILLUST NO. 1 OF 6(8208- )SX60

 CRESTA |  SWITCH RELAY COMPUTER ** Refer Fig 27751 - BRACKET, GENERATOR REGULATOR 82600F - FUSE, FUSE BLOCK 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1  ** Std Part 83391 - SWITCH, VACUUM 83391 - SWITCH, VACUUM 83399 - BRACKET, VACUUM SWITCH 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84540 - SWITCH ASSY, NEUTRAL START 85909A - BRACKET SUB-ASSY, RELAY BLOCK 85915 - RELAY, MAIN 85916 - RELAY, LIGHT CONTROL 85916 - RELAY, LIGHT CONTROL 89465 - SENSOR, OXYGEN 89466 - GASKET, OXYGEN SENSOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
