TOYOTA CROWN MS123-SEPQF / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

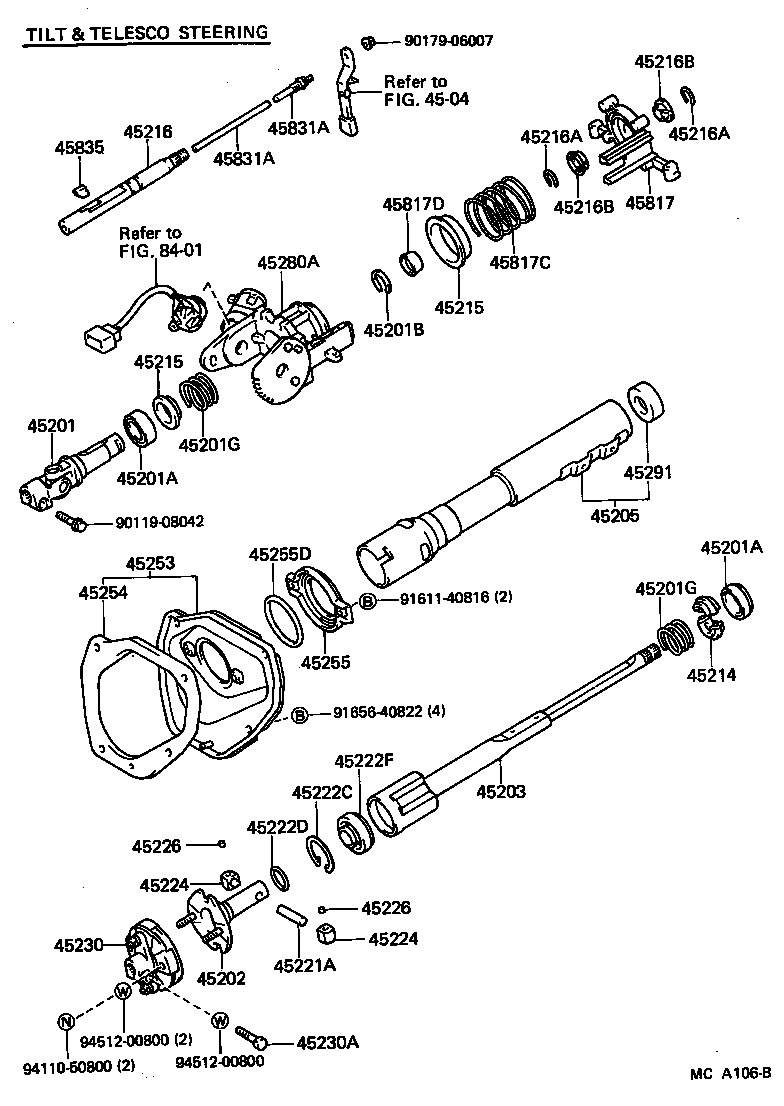

STEERING COLUMN SHAFT

ILLUST NO. 1 OF 3(8308- )4FC,5F..ROY ; (8405-8509)WG..4FC..SAL

CROWN | STEERING COLUMN SHAFT ** Refer Fig 45201 - SHAFT SUB-ASSY, STEERING MAIN 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 45205 - TUBE SUB-ASSY, STEERING COLUMN 45214 - RETAINER, MAIN SHAFT SPRING 45215 - COLLAR, MAIN SHAFT BEARING THRUST 45215 - COLLAR, MAIN SHAFT BEARING THRUST 45216 - SHAFT, STEERING SLIDING 45216A - RING, SHAFT SNAP(FOR STEERING SLIDING SHAFT) 45216A - RING, SHAFT SNAP(FOR STEERING SLIDING SHAFT) 45216B - BUSH(FOR STEERING SLIDING SHAFT) 45216B - BUSH(FOR STEERING SLIDING SHAFT) 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) 45222C - RING, HOLE SNAP(FOR DUST COVER) 45222D - RING, O(FOR DUST COVER) 45222F - COVER, DUST 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) 45230 - COUPLING ASSY, FLEXIBLE 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) 45253 - COVER, STEERING COLUMN HOLE 45254 - SHIELD, STEERING COLUMN HOLE 45255 - PLATE, STEERING COLUMN HOLE COVER 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45291 - SEAL, MAIN SHAFT UPPER DUST 45817 - STOPPER, STEERING SHAFT THRUST 45817C - SPRING, COMPRESSION(FOR STEERING SHAFT THRUST STOPPER) 45817D - CUSHION(FOR STEERING SHAFT THRUST STOPPER) 45831A - BOLT, TELESCOPE LEVER LOCK 45831A - BOLT, TELESCOPE LEVER LOCK 45835 - WEDGE, LOCK ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
