TOYOTA LAND CRUISER S T H T BJ42V-MCM / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

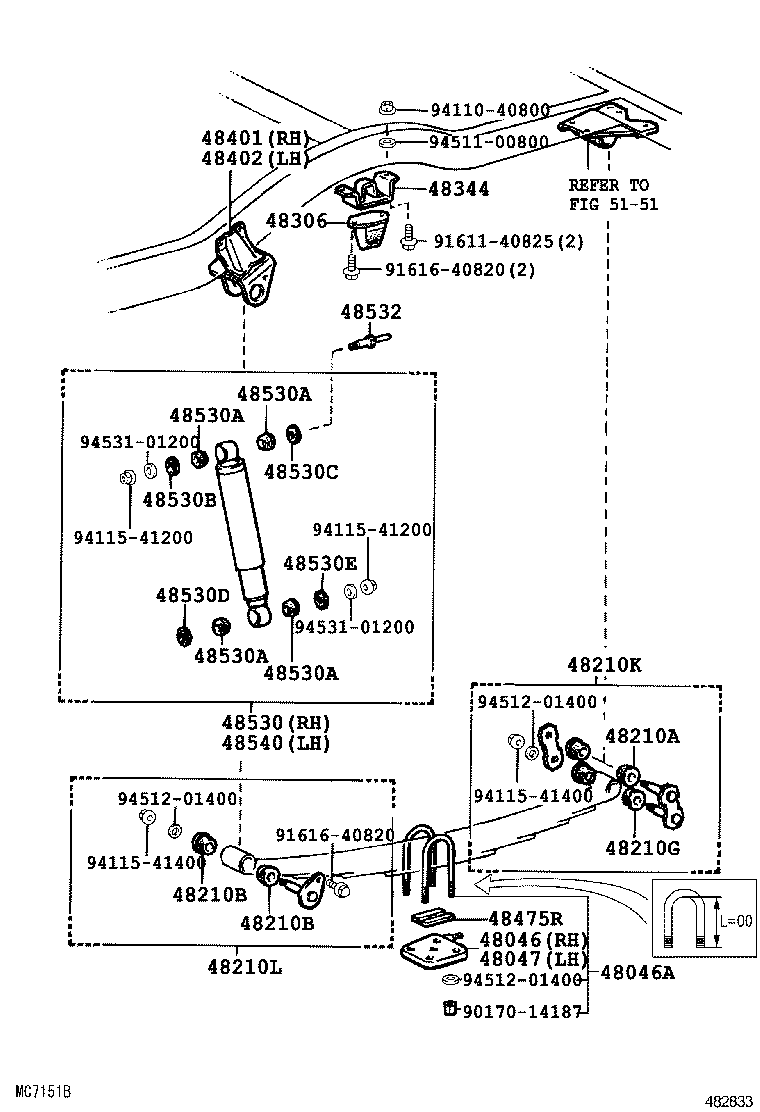

ILLUST NO. 1 OF 2(8008- )BJ41,42

LAND CRUISER S T H T | REAR SPRING SHOCK ABSORBER 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH 48046A - BOLT, U(FOR REAR SPRING) 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210B - BUSH(FOR REAR SPRING PIN) 48210B - BUSH(FOR REAR SPRING PIN) 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) 48210K - SHACKLE KIT, REAR SPRING 48210L - PIN KIT, REAR SPRING 48306 - BUMPER SUB-ASSY, REAR SPRING 48344 - STOPPER, BUMPER, REAR 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH 48475R - PLATE, DISTANCE(FOR REAR) 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 48532 - PIN, REAR SHOCK ABSORBER PIVOT 48540 - ABSORBER ASSY, SHOCK, REAR LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
