TOYOTA LAND CRUISER VAN FJ61V-KCH4 / POWERTRAIN-CHASSIS / POWER TAKE OFF CASE GEAR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER TAKE OFF CASE GEAR

(8011- )IV4

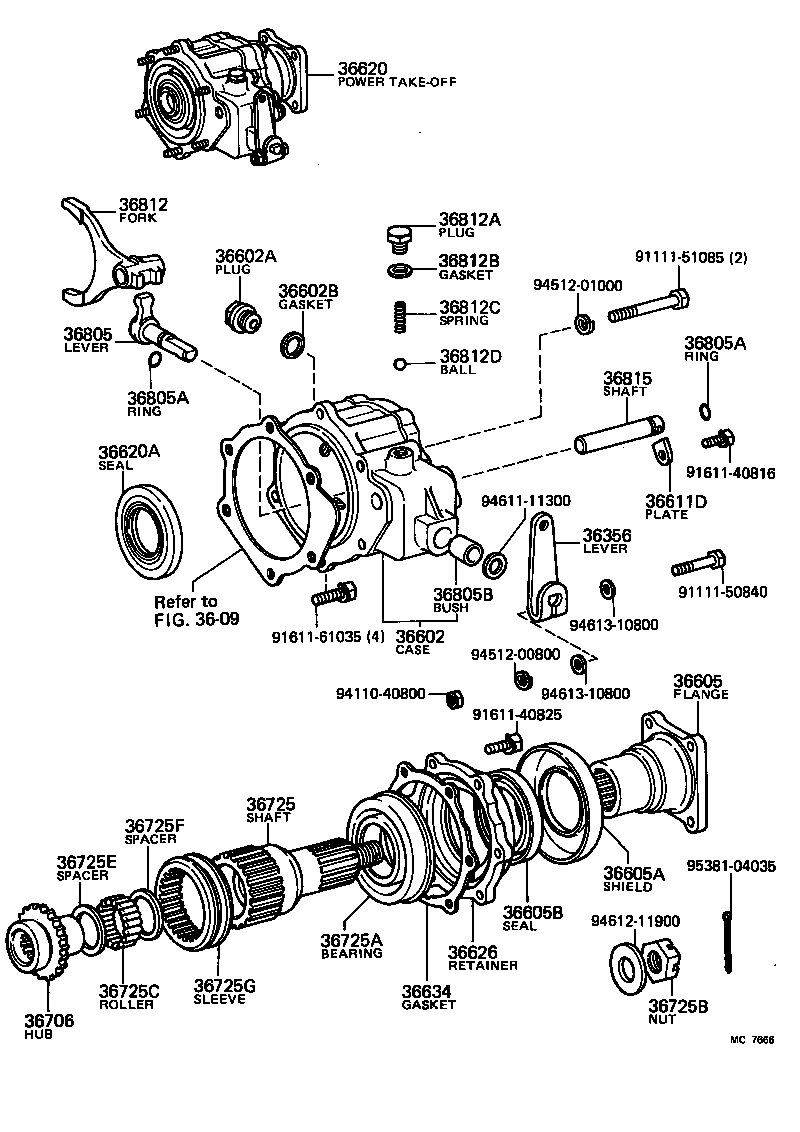

LAND CRUISER VAN | POWER TAKE OFF CASE GEAR ** Refer Fig 36356 - LEVER, HIGH & LOW SHIFT LINK,NO.1(FOR CENTER POWER TAKE-OFF) 36602 - CASE SUB-ASSY, CENTER POWER TAKE-OFF 36602A - PLUG (FOR CENTER POWER TAKE-OFF CASE) 36602B - GASKET (FOR CENTER POWER TAKE-OFF CASE) 36605 - FLANGE, UNIVERSAL JOINT (FOR CENTER POWER TAKE-OFF) 36605A - SHIELD, DUST (FOR CENTER POWER TAKE-OFF FLANGE) 36605B - SEAL, OIL (FOR CENTER POWER TAKE-OFF FLANGE) 36611D - PLATE, LOCK (FOR POWER TAKE-OFF CASE) 36620 - POWER TAKE-OFF ASSY, CENTER 36620A - SEAL, TYPE T OIL (FOR CENTER POWER TAKE-OFF) 36626 - RETAINER, CENTER POWER TAKE-OFF BEARING 36634 - GASKET, CENTER POWER TAKE-OFF BEARING RETAINER 36706 - HUB SUB-ASSY, CENTER POWER TAKE-OFF CLUTCH 36725 - SHAFT, CENTER POWER TAKE-OFF OUTPUT 36725A - BEARING(FOR CENTER POWER TAKE-OFF OUTPUT SHAFT) 36725B - NUT, CASTLE(FOR CENTER POWER TAKE-OFF OUTPUT SHAFT) 36725C - ROLLER(FOR CENTER POWER TAKE-OFF SHAFT) 36725E - SPACER(FOR CENTER POWER TAKE-OFF SHAFT) 36725F - SPACER(FOR CENTER POWER TAKE-OFF SHAFT) 36725G - SLEEVE,TRANSFER HIGH&LOWER CLUTCH(FOR CENTER POWER TAKE OFF) 36805 - LEVER SUB-ASSY, POWER TAKE-OFF INNER SHIFT 36805A - RING, O (FOR POWER TAKE-OFF INNER SHIFT LEVER) 36805A - RING, O (FOR POWER TAKE-OFF INNER SHIFT LEVER) 36805B - BUSH (FOR POWER TAKE-OFF INNER SHIFT LEVER) 36812 - FORK, POWER TAKE-OFF SHIFT, NO.2 36812A - PLUG, POWER TAKE-OFF SHIFT FORK LOCK 36812B - GASKET, POWER TAKE-OFF SHIFT FORK LOCK BOLT 36812C - SPRING, POWER TAKE-OFF SHIFT FORK LOCK 36812D - BALL, POWER TAKE-OFF SHIFT FORK LOCK 36815 - SHAFT, POWER TAKE-OFF FORK, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
