TOYOTA SOARER MZ10-HCPZT / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

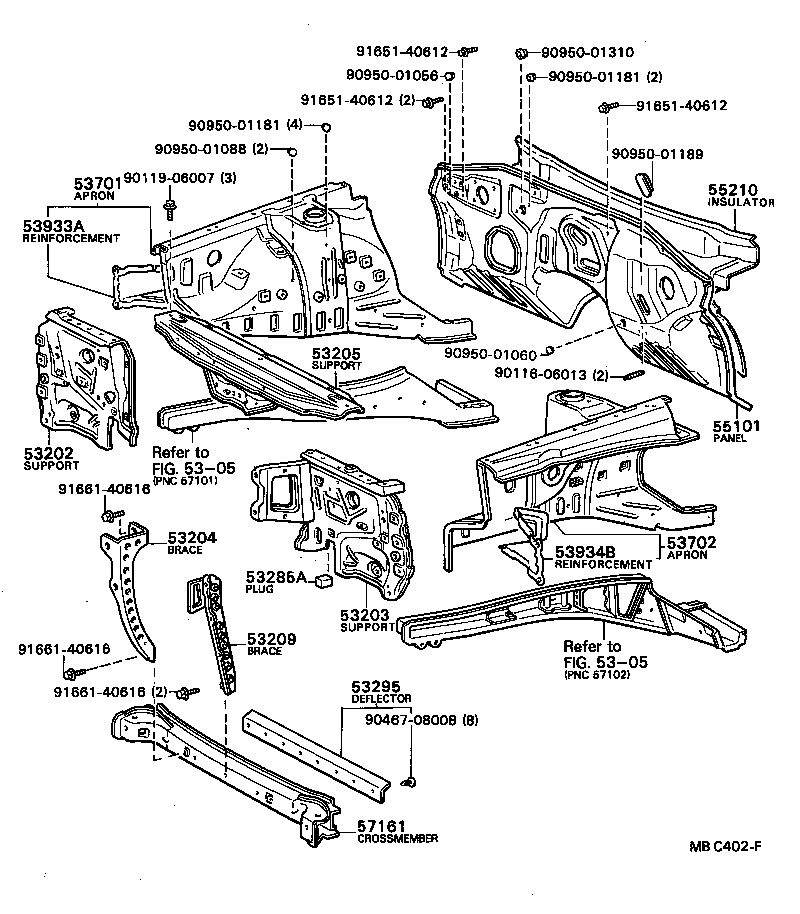

FRONT FENDER APRON DASH PANEL

(8102- )

SOARER | FRONT FENDER APRON DASH PANEL ** Refer Fig ** Refer Fig 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53209 - BRACE SUB-ASSY, HOOD LOCK 53285A - PLUG, FRONT BUMPER ARM HOLE 53295 - DEFLECTOR, RADIATOR LOWER AIR 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53933A - REINFORCEMENT, FRONT END PANEL, RH 53934B - REINFORCEMENT, FRONT END PANEL, LH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 57161 - CROSSMEMBER, FRONT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
