TOYOTA SOARER MZ10-HCPZT / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

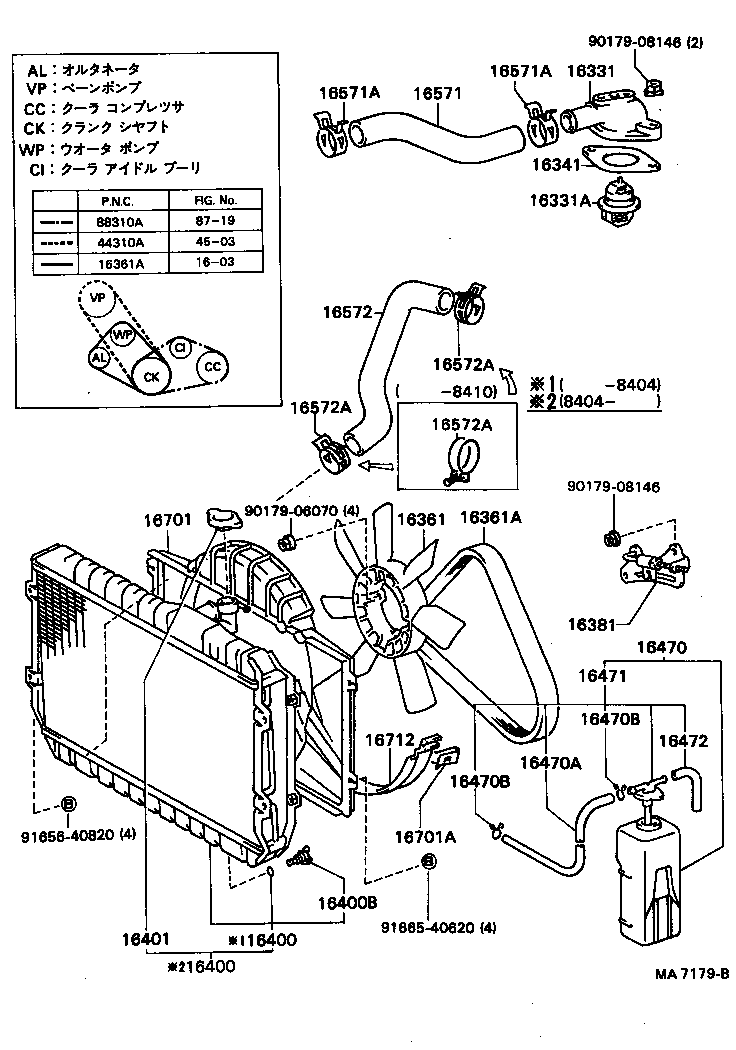

ILLUST NO. 1 OF 2(8308- )MTEU

SOARER | RADIATOR WATER OUTLET ** Refer Fig 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16361 - FAN 16361A - BELT, V(FOR FAN & ALTERNATOR) 16361A - BELT, V(FOR FAN & ALTERNATOR) 16381 - BAR, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16401 - CAP SUB-ASSY, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16701 - SHROUD SUB-ASSY, FAN 16701A - CLIP(FOR FAN SHROUD) 16712 - SHROUD, FAN, NO.2 44310A - BELT, V(FOR VANE PUMP) ** Refer Fig ** Refer Fig 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
