TOYOTA SPRINTER TRUENO AE85-FSMNS / POWERTRAIN-CHASSIS / GEAR SHIFT FORK LEVER SHAFT MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

GEAR SHIFT FORK LEVER SHAFT MTM

(8305- )AE85..5F

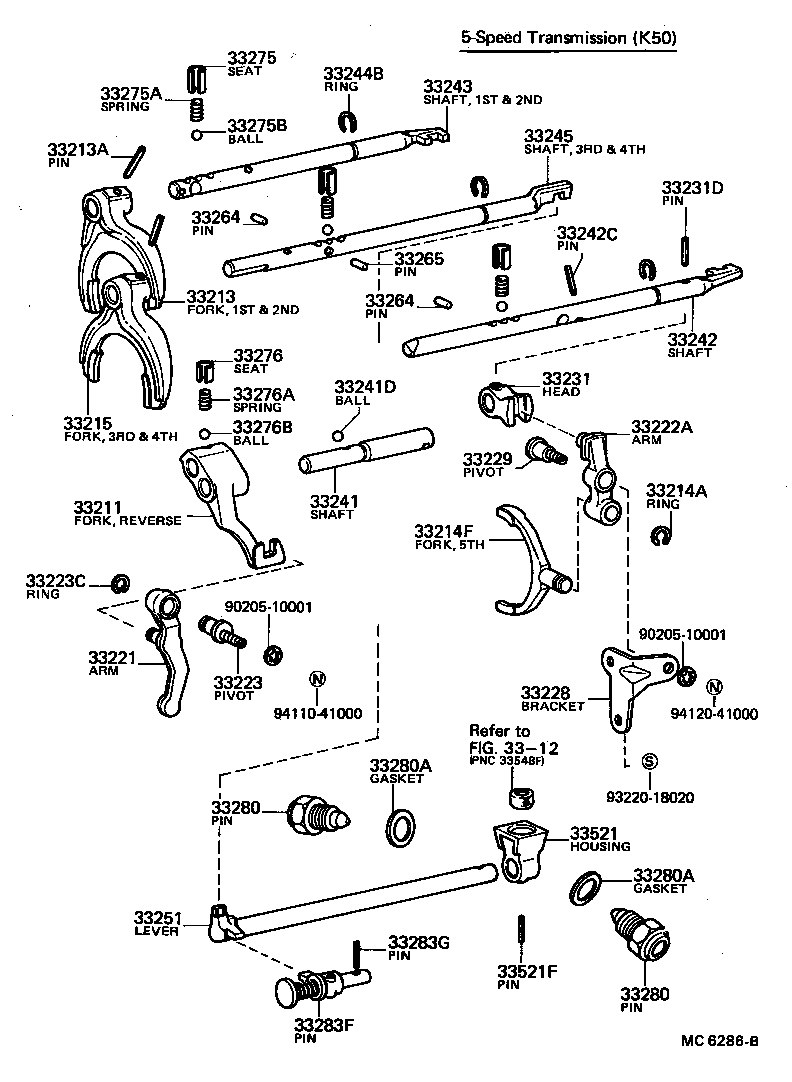

SPRINTER TRUENO | GEAR SHIFT FORK LEVER SHAFT MTM ** Refer Fig 33211 - FORK, REVERSE SHIFT 33213 - FORK, 1ST & 2ND SHIFT 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33214A - RING, SHAFT SNAP(FOR 5TH SHIFT FORK) 33214F - FORK, 5TH SHIFT 33215 - FORK, 3RD & 4TH SHIFT 33221 - ARM, REVERSE SHIFT 33222A - ARM, 5TH SHIFT 33223 - PIVOT, SHIFT ARM 33223C - RING, SHAFT SNAP(FOR SHIFT ARM PIVOT) 33228 - BRACKET, REVERSE SHIFT ARM 33229 - PIVOT, 5TH SHIFT ARM 33231 - HEAD, REVERSE SHIFT 33231D - PIN(FOR REVERSE SHIFT HEAD) 33241 - SHAFT, REVERSE SHIFT FORK 33241D - BALL, INTER-LOCK(FOR REVERSE SHIFT FORK) 33242 - SHAFT, GEAR SHIFT FORK, NO.1 33242C - PIN, STRAIGHT (FOR SHIFT FORK SHAFT) 33243 - SHAFT, 1ST & 2ND SHIFT FORK 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) 33245 - SHAFT, 3RD & 4TH SHIFT FORK 33251 - LEVER, SHIFT & SELECT 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33265 - PIN, SHIFT INTER LOCK, NO.2 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) 33275B - BALL, SHAFT DETENT 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) 33276B - BALL, SHIFT DETENT, NO.2 33280 - PIN ASSY, REVERSE RESTRICT 33280 - PIN ASSY, REVERSE RESTRICT 33280A - GASKET, REVERSE RESTRICT PIN 33280A - GASKET, REVERSE RESTRICT PIN 33283F - PIN, REVERSE RESTRICT 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) 33521 - HOUSING, SHIFT LEVER 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
