TOYOTA SPRINTER AE70-FEKNS / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

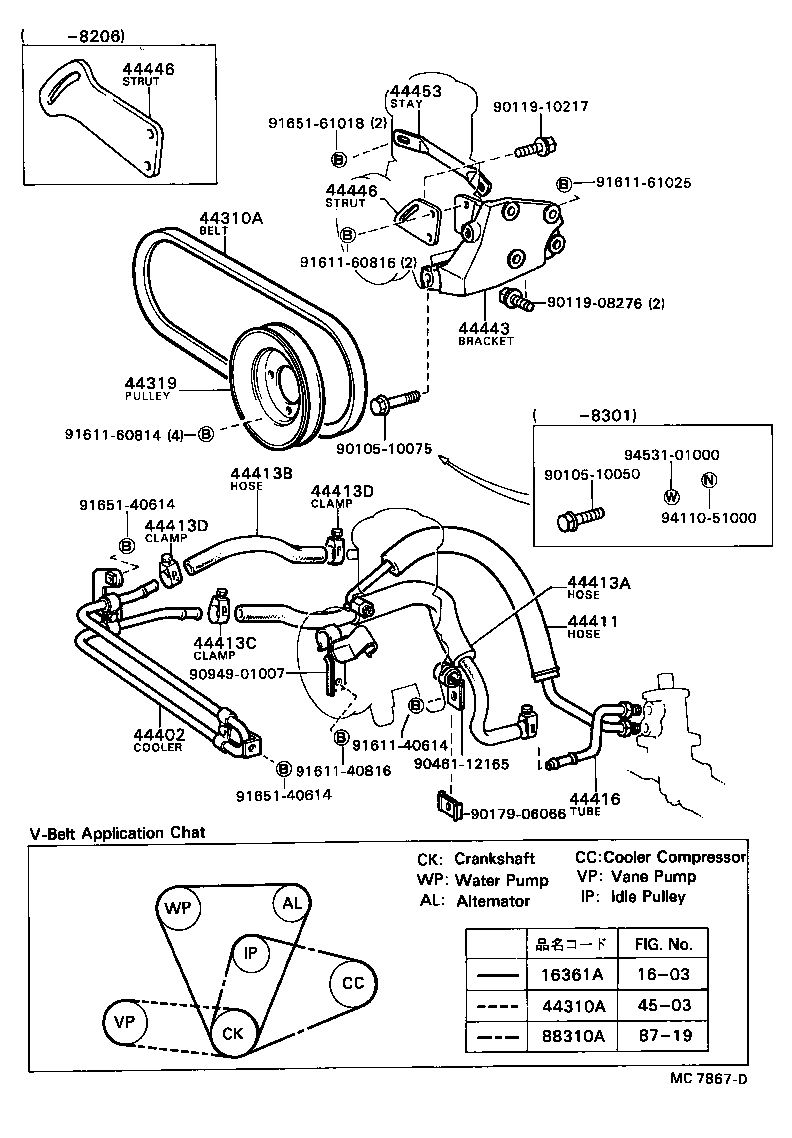

POWER STEERING TUBE

(8108- )AE70

SPRINTER | POWER STEERING TUBE ** Refer Fig 16361A - BELT, V(FOR FAN & ALTERNATOR) 44310A - BELT, V(FOR VANE PUMP) 44310A - BELT, V(FOR VANE PUMP) 44319 - PULLEY, VANE PUMP DRIVE 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 44411 - HOSE, PRESSURE FEED 44413A - HOSE(FOR RETURN TUBE OUTLET) 44413B - HOSE(FOR RESERVOIR TANK INLET) 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44443 - BRACKET, PUMP 44446 - STRUT, ADJUSTING 44446 - STRUT, ADJUSTING 44453 - STAY, PUMP, FRONT ** Refer Fig ** Refer Fig 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
