TOYOTA CAMRY VISTA CV10-UHPNX / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SHIFT LEVER RETAINER

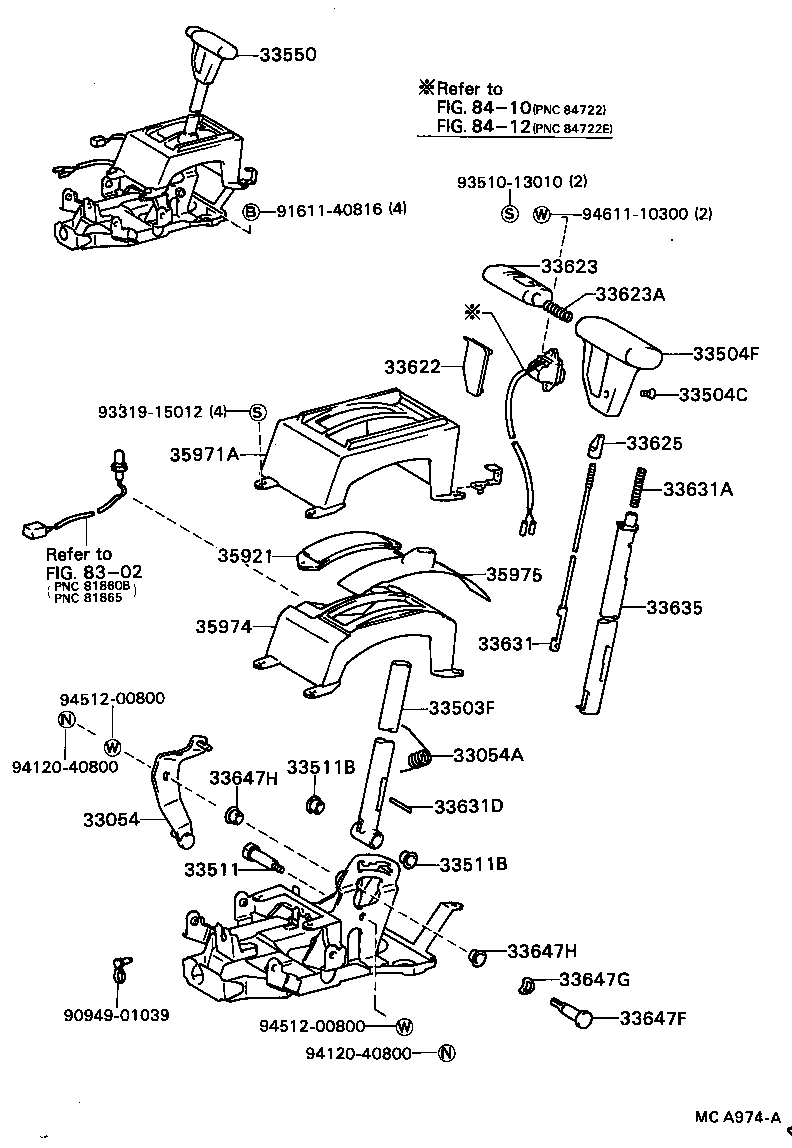

ILLUST NO. 1 OF 2(8406- )4FC..VF,VL,VR,VX,XE,XT,ZE,ZX

CAMRY VISTA | SHIFT LEVER RETAINER 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) 33054A - SPRING, TORSION(FOR SHIFT LEVER NO.2) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33511B - BUSH (FOR CONTROL SHAFT) 33511B - BUSH (FOR CONTROL SHAFT) 33550 - FLOOR SHIFT ASSY, TRANSMISSION 33622 - COVER, SHIFT LEVER KNOB, NO.1 33623 - BUTTON, SHIFT LEVER KNOB 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) 33625 - SLEEVE, SHIFT LEVER KNOB 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33635 - GUIDE, WIRE (FOR SHIFT LEVER) 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) 33647H - BUSH (FOR CONTROL LINK SHAFT) 33647H - BUSH (FOR CONTROL LINK SHAFT) 35921 - PLATE, CONTROL POSITION INDICATOR 35971A - HOUSING, POSITION INDICATOR, UPPER 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
