TOYOTA CAMRY VISTA CV10-UHPNX / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

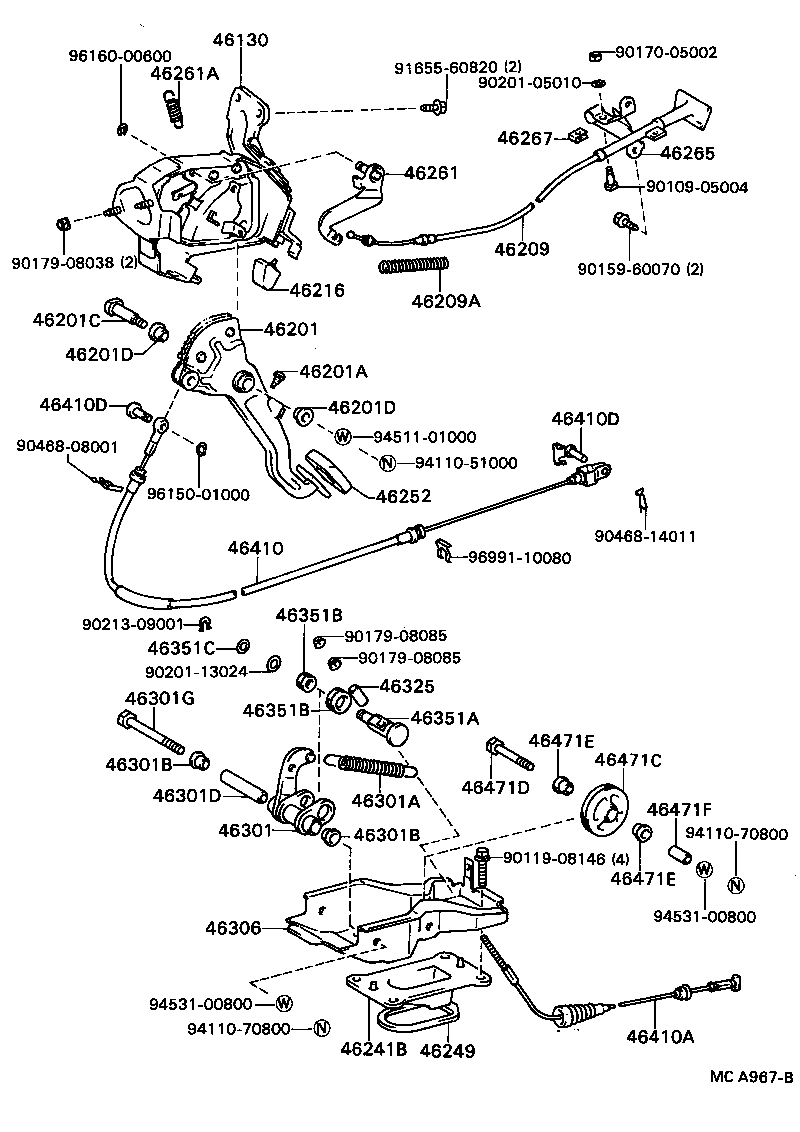

ILLUST NO. 1 OF 2(8406- )4FC..VF,VL,VR,VX,XE,XT,ZE,ZX

CAMRY VISTA | PARKING BRAKE CABLE 46130 - BRACKET ASSY, PARKING BRAKE PEDAL 46201 - PEDAL SUB-ASSY, PARKING BRAKE 46201A - CUSHION(FOR PARKING BRAKE PEDAL) 46201C - SHAFT, PEDAL 46201D - BUSH(FOR PARKING BRAKE PEDAL) 46201D - BUSH(FOR PARKING BRAKE PEDAL) 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE 46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE) 46216 - CUSHION, PARKING PEDAL 46241B - BOOT, INTERMEDIATE LEVER 46249 - SHIELD, PARKING BRAKE HOLE 46252 - PAD, PARKING PEDAL 46261 - LEVER, PARKING BRAKE RELEASE INTERMEDIATE 46261A - SPRING(FOR PARKING BRAKE RELEASE INTERMEDIATE LEVER) 46265 - GUIDE, PARKING BRAKE RELEASE ROD 46267 - CUSHION, RELEASE ROD GUIDE INTERMEDIATE 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) 46301B - BUSH(FOR INTERMEDIATE LEVER) 46301B - BUSH(FOR INTERMEDIATE LEVER) 46301D - COLLAR(FOR INTERMEDIATE LEVER) 46301G - BOLT(FOR INTERMEDIATE LEVER) 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) 46325 - SLEEVE, PARKING BRAKE CABLE 46351A - SHAFT, INTERMEDIATE LEVER 46351B - BUSH(FOR INTERMEDIATE LEVER SHAFT) 46351B - BUSH(FOR INTERMEDIATE LEVER SHAFT) 46351C - SHIM(FOR INTERMEDIATE LEVER SHAFT) 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46410A - CABLE ASSY, PARKING BRAKE, NO.5 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) 46471C - PULLEY, INTERMEDIATE LEVER 46471D - BOLT(FOR INTERMEDIATE LEVER PULLEY) 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) 46471F - COLLAR(FOR INTERMEDIATE LEVER PULLEY) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
