TOYOTA CARINA FF ST150-AEMEL / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

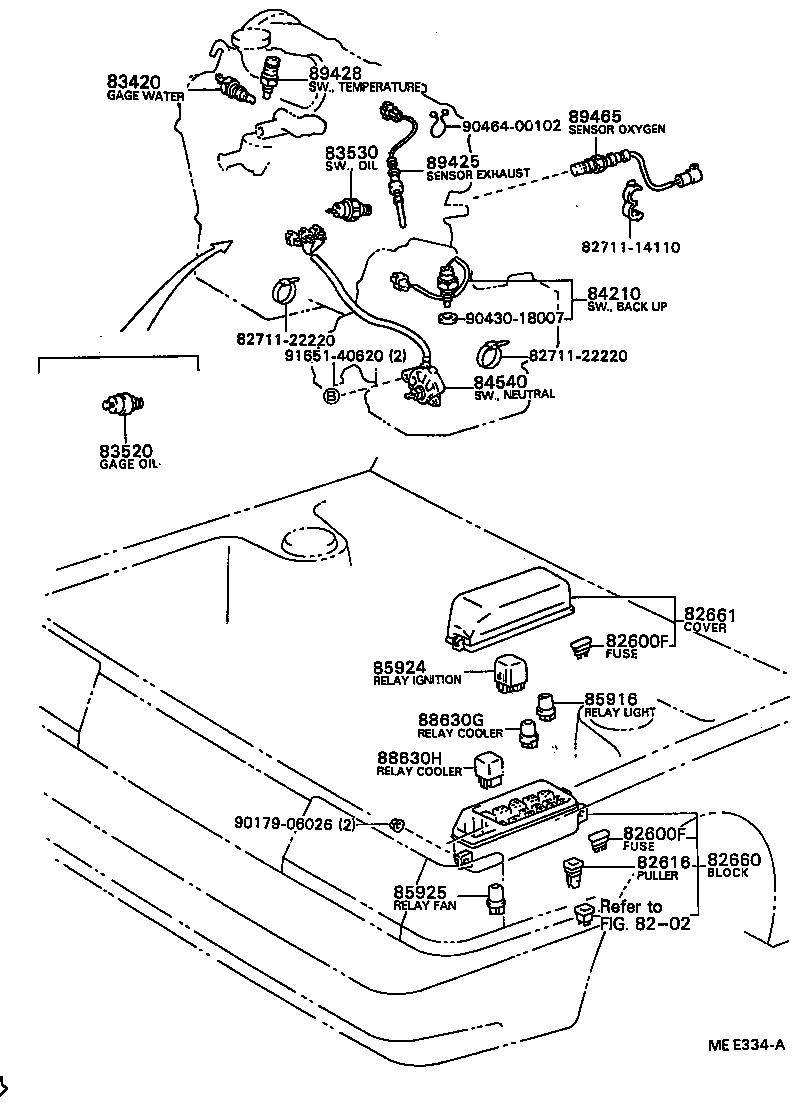

ILLUST NO. 1 OF 5(8405- )ST150

CARINA FF | SWITCH RELAY COMPUTER ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82661 - COVER, RELAY BLOCK, NO.1 ** Std Part ** Std Part ** Std Part 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83520 - GAGE ASSY,OIL PRESSURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84540 - SWITCH ASSY, NEUTRAL START 85916 - RELAY, LIGHT CONTROL 85924 - RELAY, IGNITION CONTROL 85925 - RELAY, RADIATOR FAN 88630G - RELAY ASSY, COOLER 88630H - RELAY ASSY, COOLER 89425 - SENSOR, EXHAUST GAS TEMPERATURE 89428 - SWITCH, TEMPERATURE DETECT, NO.2 89465 - SENSOR, OXYGEN ** Std Part ** Std Part ** Std Part ** Std Part
