TOYOTA HIACE QUICK DELIVERY LH24HV-QDLT / POWERTRAIN-CHASSIS / CONTROL SHAFT CROSSSHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CONTROL SHAFT CROSSSHAFT

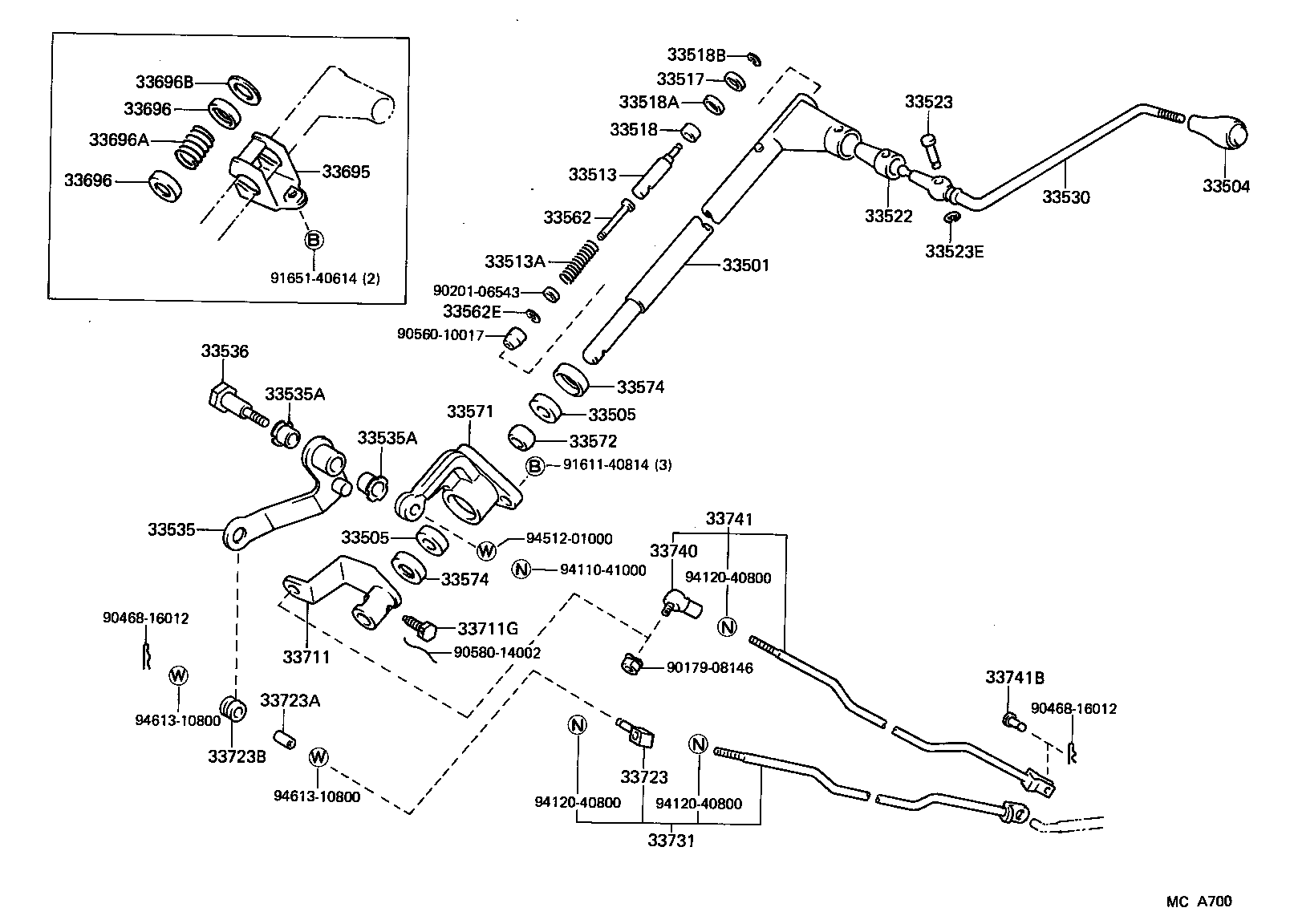

ILLUST NO. 1 OF 2(8401- )

HIACE QUICK DELIVERY | CONTROL SHAFT CROSSSHAFT 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) 33517 - RETAINER, CONTROL SHAFT UPPER SPRING 33518 - BUSH, UPPER CONTROL SHAFT PIECE 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) 33523E - RING, E (FOR SHIFT LEVER PIN) 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) 33535A - BUSH (FOR CONTROL SELECT LEVER) 33535A - BUSH (FOR CONTROL SELECT LEVER) 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) 33562 - STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT 33562E - RING, E (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER) 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) 33695 - COVER, SELECTING SPRING (FOR COLUMN SHIFT) 33696 - SEAT, SELECT SPRING 33696 - SEAT, SELECT SPRING 33696A - SPRING, COMPRESSION 33696B - PLATE, SELECT RETURN 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) 33711G - BOLT, CONTROL SHAFT LEVER LOCK 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) 33741B - PIN, W/HOLE (FOR COLUMN SHIFTING ROD) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
