TOYOTA MARK 2 MX71-XTPGT / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

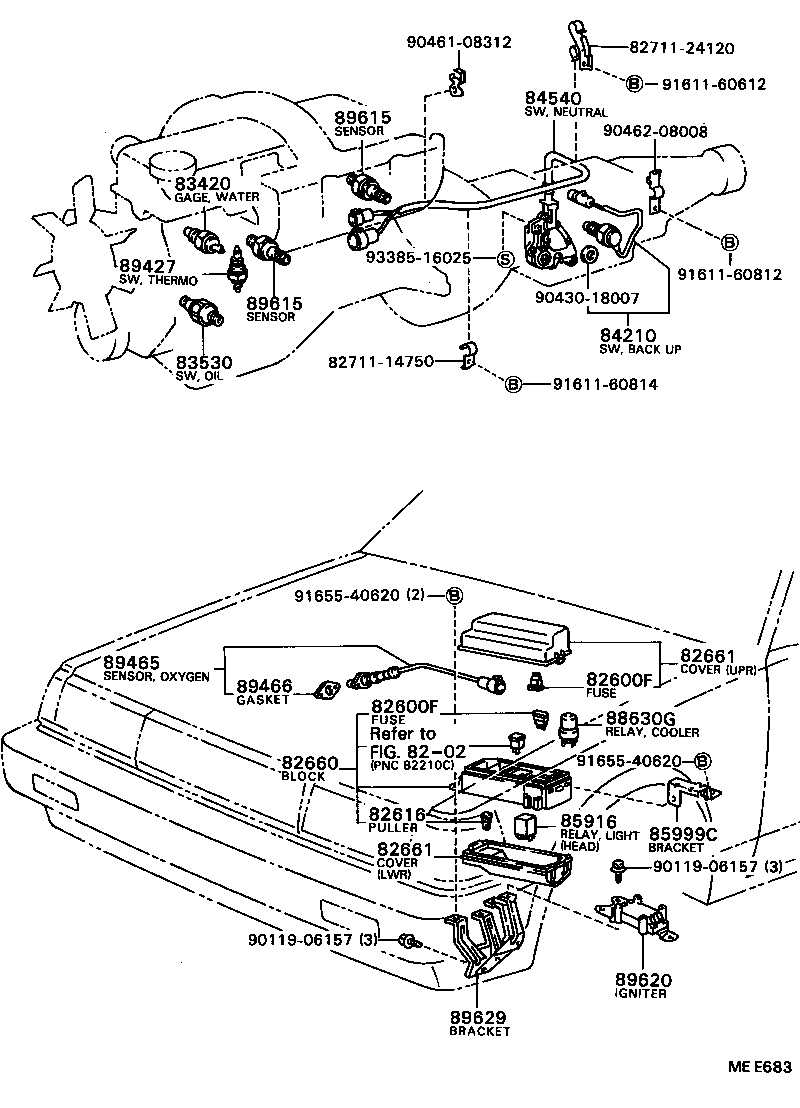

ILLUST NO. 1 OF 7(8408-8510)MX71

MARK 2 | SWITCH RELAY COMPUTER ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1 ** Std Part ** Std Part 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84540 - SWITCH ASSY, NEUTRAL START 85916 - RELAY, LIGHT CONTROL 85999C - BRACKET, RELAY, NO.3 88630G - RELAY ASSY, COOLER 89427 - SWITCH, TEMPERATURE DETECT 89465 - SENSOR, OXYGEN 89466 - GASKET, OXYGEN SENSOR 89615 - SENSOR, KNOCK CONTROL 89615 - SENSOR, KNOCK CONTROL 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
