TOYOTA SPRINTER TRUENO AE86-FCMVF / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

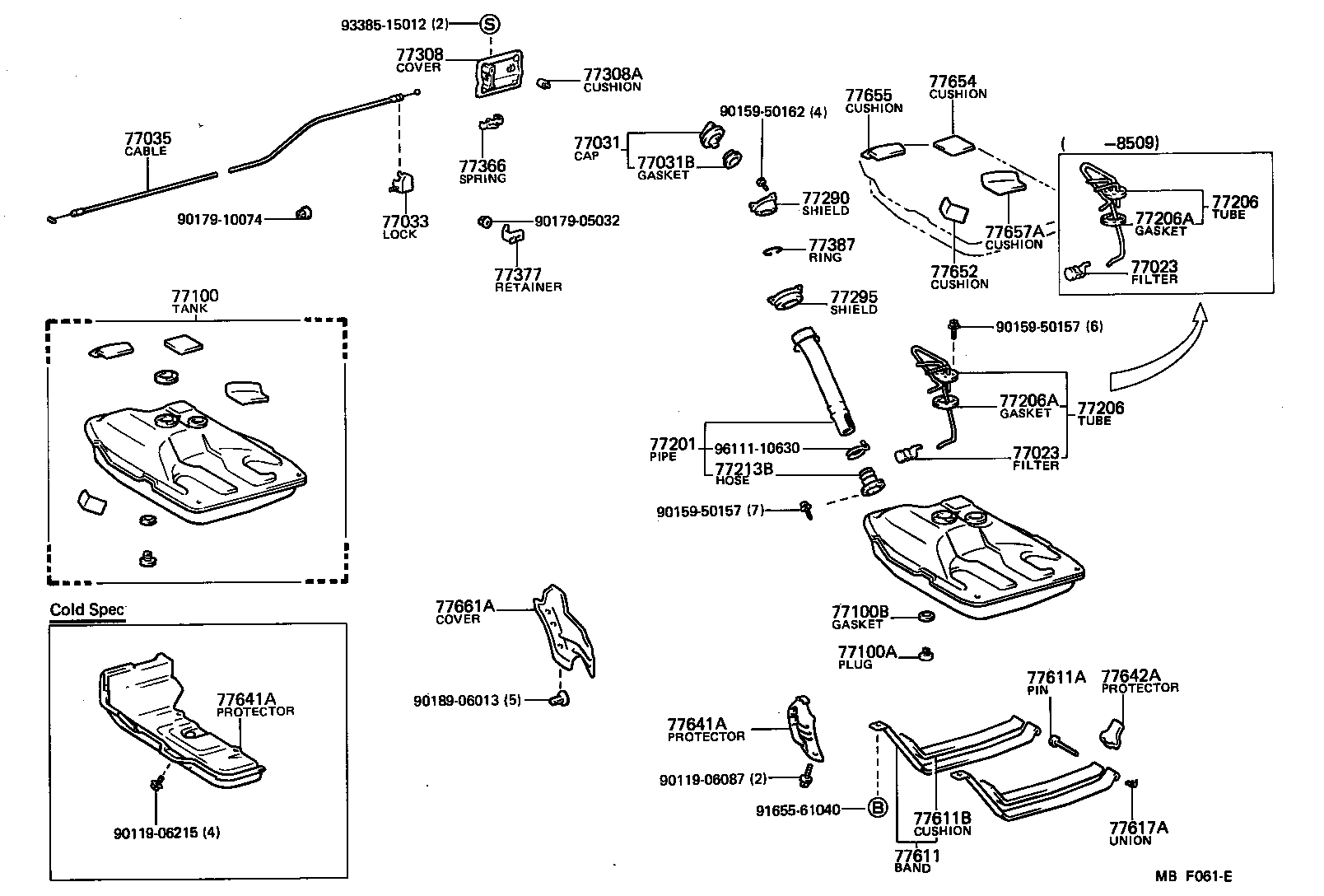

FUEL TANK TUBE

ILLUST NO. 2 OF 2(8305- )

SPRINTER TRUENO | FUEL TANK TUBE 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77033 - LOCK SUB-ASSY, FUEL TANK CAP 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77213B - HOSE, FUEL TANK TO FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77295 - SHIELD, FUEL FILLER PIPE 77308 - COVER SUB-ASSY, FUEL INLET BOX 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77387 - RING, FUEL INLET BOX 77611 - BAND, FUEL TANK 77611A - PIN (FOR FUEL TANK BAND) 77611B - CUSHION, FUEL TANK, NO.4 77617A - UNION, AUXILIARY FUEL BAND 77641A - PROTECTOR, FUEL TANK, NO.1 77641A - PROTECTOR, FUEL TANK, NO.1 77642A - PROTECTOR, FUEL TANK, NO.2 77652 - CUSHION, FUEL TANK, NO.1 77654 - CUSHION, FUEL TANK, NO.2 77655 - CUSHION, FUEL TANK, NO.3 77657A - CUSHION, FUEL TANK, NO.5 77661A - COVER, FUEL TANK FILLER HOSE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
