TOYOTA HILUX LN60V-MSX / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

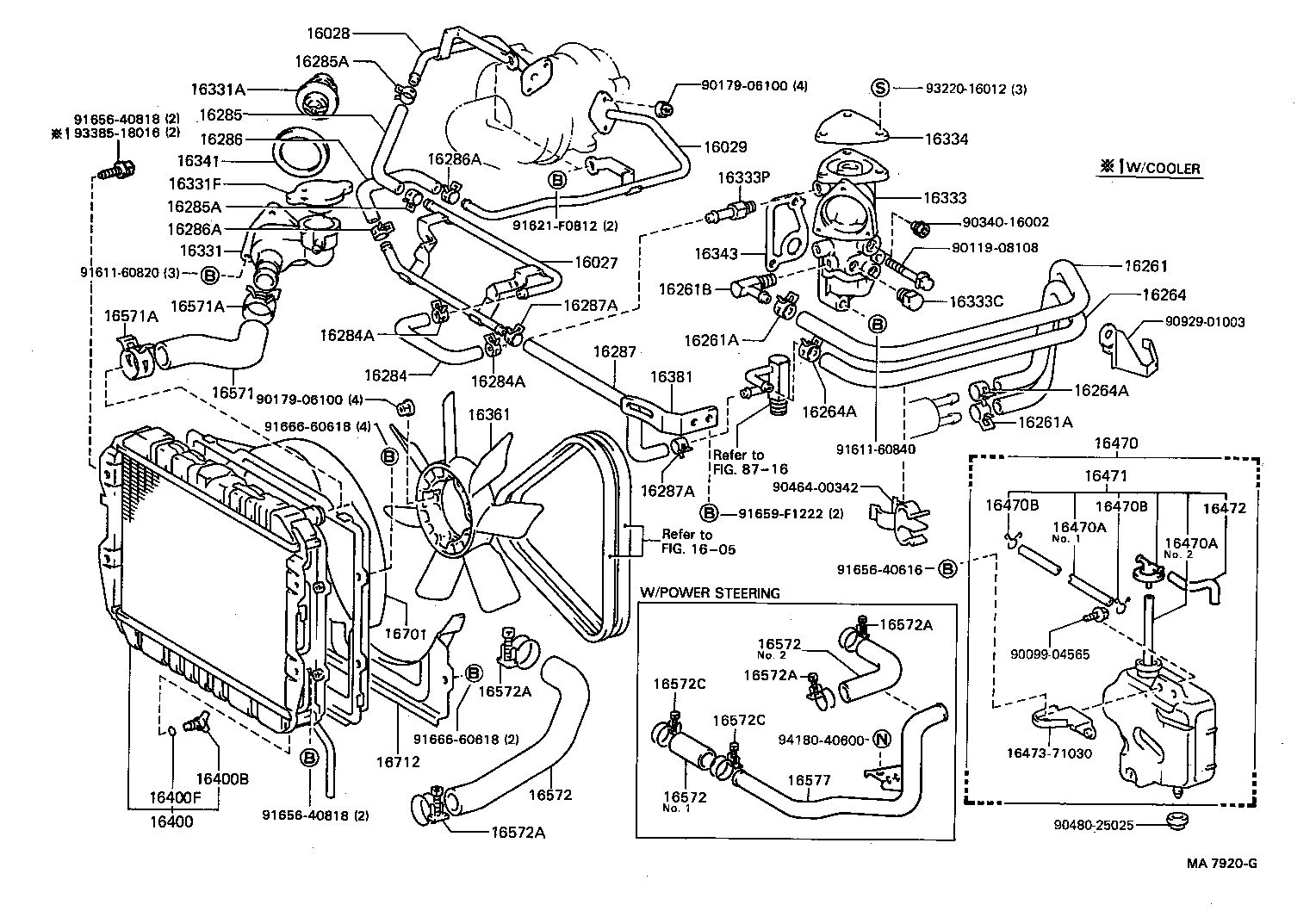

RADIATOR WATER OUTLET

(8411- )2LT

HILUX | RADIATOR WATER OUTLET 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 16029 - PIPE SUB-ASSY, TURBO WATER, NO.3 ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261B - UNION(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16284 - HOSE, TURBO WATER, NO.1 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16284A - CLIP(FOR TURBO WATER HOSE NO.1) 16285 - HOSE, TURBO WATER, NO.2 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16286 - HOSE, TURBO WATER, NO.3 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16287 - HOSE, TURBO WATER, NO.4 16287A - CLIP(FOR TURBO WATER HOSE NO.4) 16287A - CLIP(FOR TURBO WATER HOSE NO.4) 16331 - OUTLET, WATER 16331A - THERMOSTAT 16331F - CAP SUB-ASSY(FOR WATER OUTLET) 16333 - HOUSING, WATER OUTLET 16333C - PLUG, W/HEAD TAPER SCREW 16333P - UNION(FOR WATER OUTLET HOUSING) 16334 - COVER, WATER OUTLET HOUSING 16341 - GASKET, WATER OUTLET 16343 - GASKET, WATER OUTLET HOUSING 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER ** Std Part 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572 - HOSE, RADIATOR, OUTLET 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) 16577 - PIPE, RADIATOR, NO.7 16701 - SHROUD SUB-ASSY, FAN 16712 - SHROUD, FAN, NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
