TOYOTA CELICA ST165-BLMVZ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

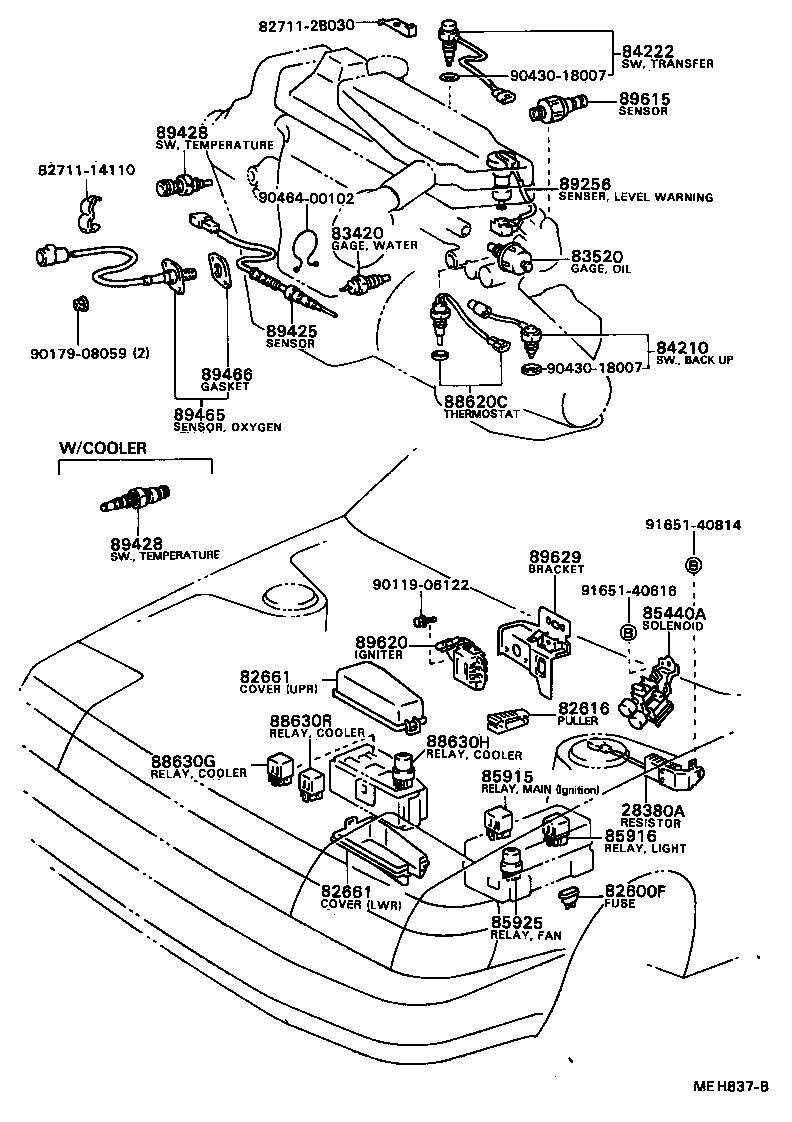

ILLUST NO. 1 OF 5(8610- )ST165

CELICA | SWITCH RELAY COMPUTER 28380A - RESISTER, FUEL PUMP 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1 ** Std Part ** Std Part 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83520 - GAGE ASSY,OIL PRESSURE SENDER 84210 - SWITCH ASSY, BACK-UP LAMP 84222 - SWITCH, TRANSFER INDICATOR, NO.1 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL 85915 - RELAY, MAIN 85916 - RELAY, LIGHT CONTROL 85925 - RELAY, RADIATOR FAN 88620C - THERMO SWITCH ASSY 88630G - RELAY ASSY, COOLER 88630H - RELAY ASSY, COOLER 88630R - RELAY ASSY, COOLER, NO.3 89256 - SENSOR, LEVEL WARNING 89425 - SENSOR, EXHAUST GAS TEMPERATURE 89428 - SWITCH, TEMPERATURE DETECT, NO.2 89428 - SWITCH, TEMPERATURE DETECT, NO.2 89465 - SENSOR, OXYGEN 89466 - GASKET, OXYGEN SENSOR 89615 - SENSOR, KNOCK CONTROL 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
