TOYOTA HIACE TRUCK YH80-KDP / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

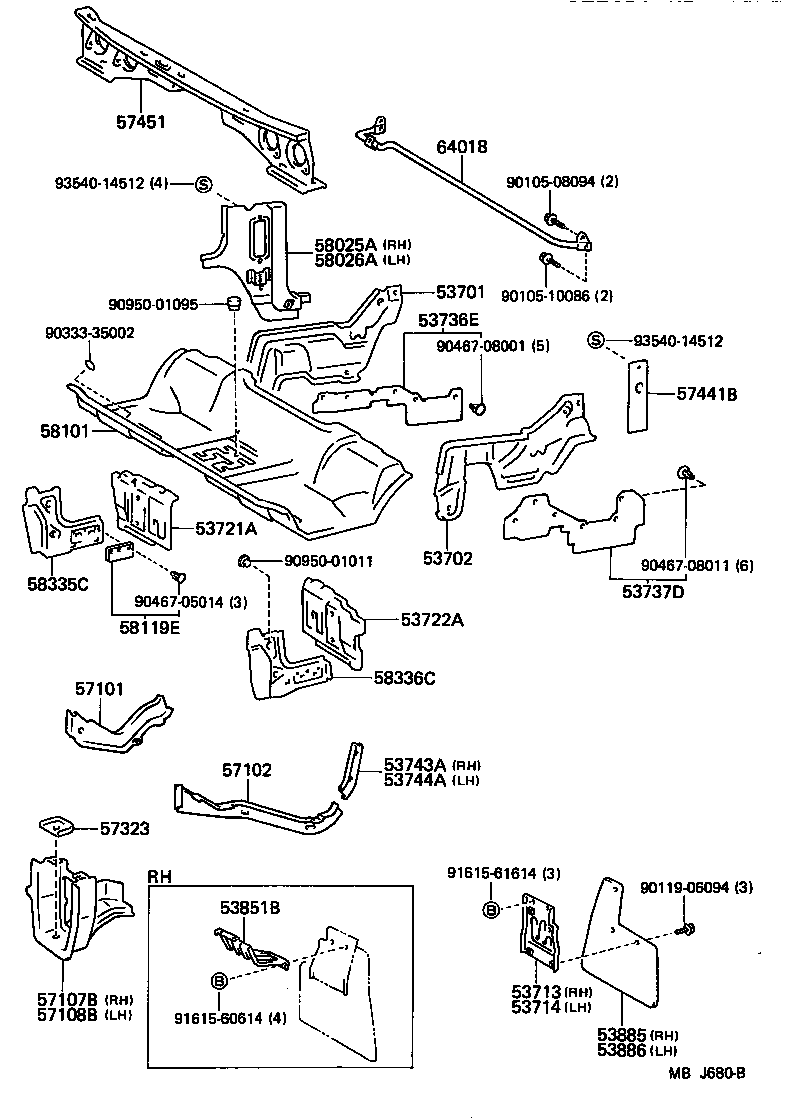

FRONT FLOOR PANEL FRONT FLOOR MEMBER

ILLUST NO. 1 OF 2(8508- )TW

HIACE TRUCK | FRONT FLOOR PANEL FRONT FLOOR MEMBER 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53713 - APRON, FENDER SIDE, RH 53714 - APRON, FENDER SIDE, LH 53721A - APRON, FRONT FENDER, NO.2 RH 53722A - APRON, FRONT FENDER, NO.2 LH 53736E - SEAL, FRONT FENDER APRON, RH 53737D - SEAL, FRONT FENDER APRON, LH 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH 53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH 53851B - STAY, FENDER, RH 53885 - MUDGUARD, FRONT RH 53886 - MUDGUARD, FRONT LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57107B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, RH 57108B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH 57323 - PATCH, FRONT MOUNTING 57441B - COVER, FLOOR SIDE RAIL PLATE 57451 - MEMBER, FRONT FLOOR CROSS 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH 58101 - PAN SUB-ASSY, FRONT FLOOR 58119E - COVER, FRONT FLOOR SIDE, FRONT 58335C - PLATE, FLOOR SIDE, FRONT RH 58336C - PLATE, FLOOR SIDE, FRONT LH 64018 - BAR SUB-ASSY, BODY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
