TOYOTA SPRINTER TRUENO AE92-BCMXR / POWERTRAIN-CHASSIS / FRONT DRIVE SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

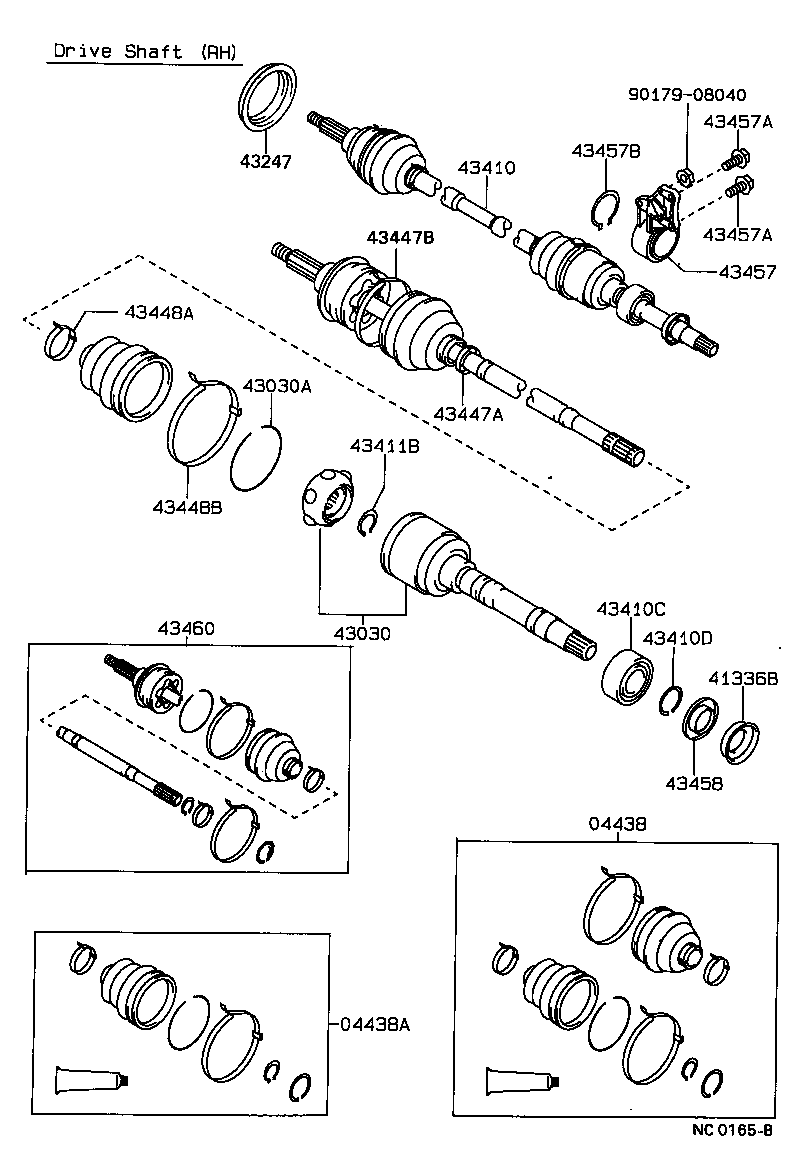

FRONT DRIVE SHAFT

ILLUST NO. 1 OF 2(8705- )SPC

SPRINTER TRUENO | FRONT DRIVE SHAFT 04438 - BOOT KIT, FRONT DRIVE SHAFT 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT 41336B - COVER, DUST(FOR FRONT DRIVE SHAFT) 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 43410 - SHAFT ASSY, FRONT DRIVE, RH 43410C - BEARING (FOR FRONT DRIVE SHAFT) 43410D - RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING) 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) 43457 - BRACKET, DRIVE SHAFT BEARING 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) 43458 - COVER, FRONT DRIVE SHAFT DUST 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH ** Std Part
