TOYOTA SPRINTER AE81-FEKNS / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

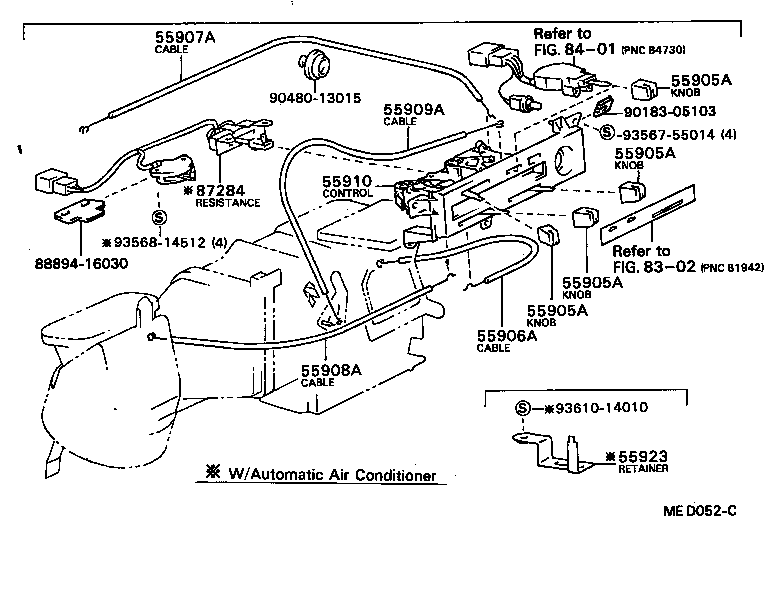

ILLUST NO. 1 OF 3(8305- )

SPRINTER | HEATING AIR CONDITIONING CONTROL AIR DUCT 55905A - KNOB, HEATER CONTROL 55905A - KNOB, HEATER CONTROL 55905A - KNOB, HEATER CONTROL 55905A - KNOB, HEATER CONTROL 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR 55923 - RETAINER, HEATER CONTROL, UPPER ** Refer Fig ** Refer Fig 87284 - RESISTOR SUB-ASSY, VARIABLE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
