TOYOTA DYNA TOYOACE BU62D-MDMT / POWERTRAIN-CHASSIS / HOIST CYLINDER TRUNNION LIFT ARM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

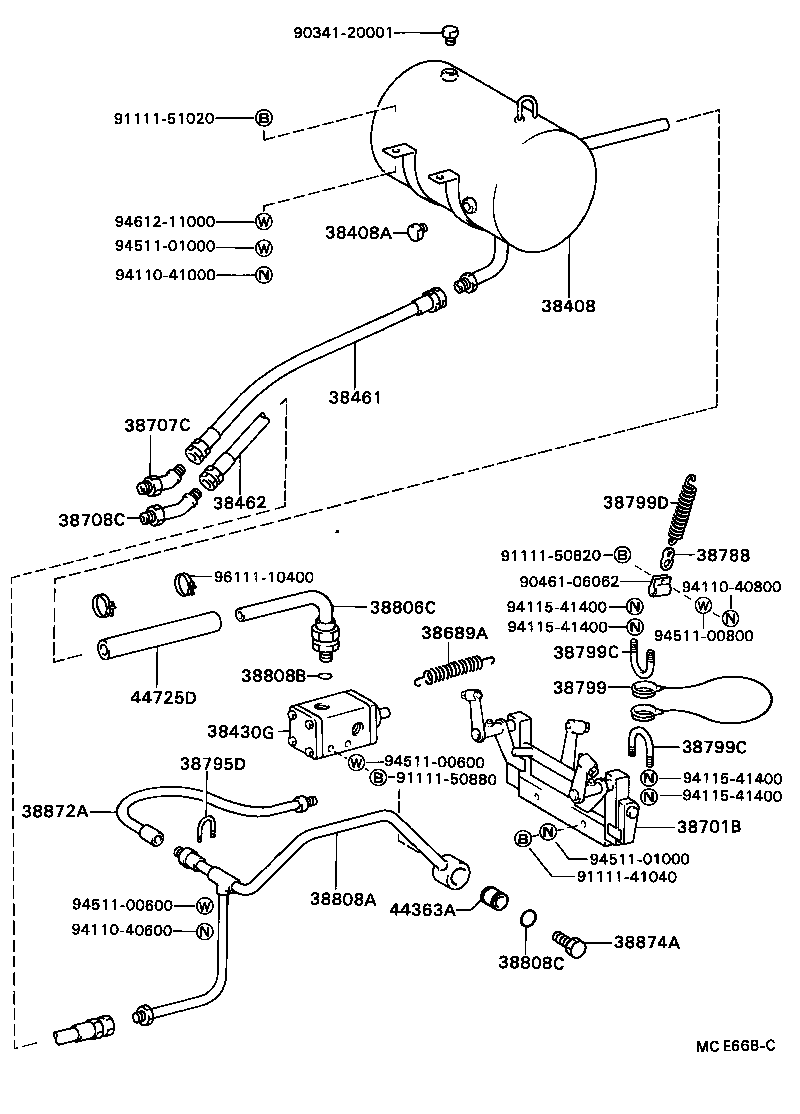

HOIST CYLINDER TRUNNION LIFT ARM

(8708- )DM3

DYNA TOYOACE | HOIST CYLINDER TRUNNION LIFT ARM 38408 - TANK SUB-ASSY, POWER 38408A - PLUG (FOR POWER TANK) 38430G - VALVE ASSY, POWER 38461 - HOSE, POWER OIL PUMP SUCTION 38462 - HOSE, POWER OIL PUMP DELIVERY 38689A - SPRING, TENSION (FOR STOP LEVER RETURN) 38701B - ARM SUB-ASSY, LIFT 38707C - UNION (FOR SUCTION HOSE) 38708C - UNION (FOR DELIVERY HOSE) 38788 - HOOK, WIRE JOINT 38795D - BOLT, U (FOR DELIVERY PIPE) 38799 - ROPE, WIRE 38799C - BOLT, U (FOR LIFT ARM) 38799C - BOLT, U (FOR LIFT ARM) 38799D - SPRING, TENSION (FOR LIFT ARM) 38806C - PIPE SUB-ASSY, HOIST CYLINDER SUCTION, NO.1 38808A - PIPE SUB-ASSY, HOIST CYLINDER DELIVERY 38808B - RING, 0 (FOR HOIST CYLINDER DELIVERY) 38808C - RING, O (FOR HOIST CYLINDER SUCTION) 38872A - PIPE, HOIST CYLINDER 38874A - NIPPLE, HOIST CYLINDER 44363A - STRAINER, OIL(FOR HOIST CYLINDER PIPE) 44725D - HOSE, SUCTION(FOR POWER OIL PUMP) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
