TOYOTA DYNA TOYOACE WU75D-MDT / POWERTRAIN-CHASSIS / TRANSMISSION GEAR MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

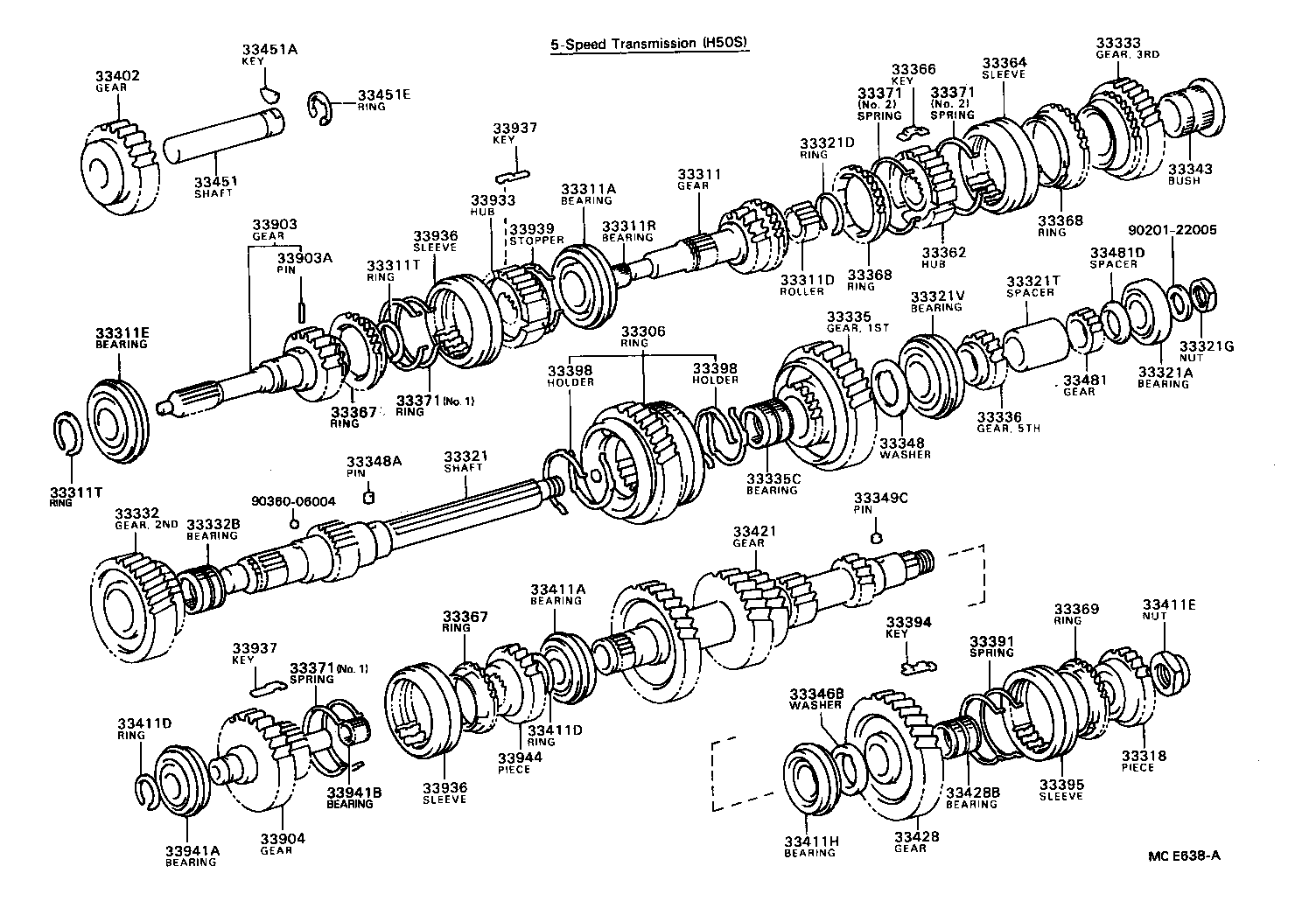

TRANSMISSION GEAR MTM

(8708- )WU75,9#

DYNA TOYOACE | TRANSMISSION GEAR MTM 33306 - RING SUB-ASSY, SYNCHRONIZER, NO.1 33311 - SHAFT, INPUT 33311A - BEARING (FOR INPUT SHAFT FRONT) 33311D - BEARING, INPUT SHAFT 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) 33311R - BEARING, NEEDLE ROLLER 33311T - RING, SHAFT SNAP (FOR INPUT SHAFT) 33311T - RING, SHAFT SNAP (FOR INPUT SHAFT) 33318 - PIECE, GEAR SPLINE, NO.5 33321 - SHAFT, OUTPUT 33321A - BEARING (FOR OUTPUT SHAFT REAR) 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) 33321T - SPACER (FOR OUTPUT SHAFT) 33321V - BEARING (FOR OUTPUT SHAFT CENTER) 33332 - GEAR, 2ND 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) 33333 - GEAR, 3RD 33335 - GEAR, 1ST 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33336 - GEAR, 5TH 33343 - BUSH, 3RD & 2ND GEAR 33346B - WASHER, 5TH GEAR THRUST 33348 - WASHER, 1ST GEAR THRUST 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) 33349C - PIN (FOR 5TH GEAR THRUST WASHER) 33362 - HUB, TRANSMISSION CLUTCH, NO.2 33364 - SLEEVE, TRANSMISSION HUB, NO.2 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 33367 - RING, SYNCHRONIZER, NO.1 33367 - RING, SYNCHRONIZER, NO.1 33368 - RING, SYNCHRONIZER, NO.2 33368 - RING, SYNCHRONIZER, NO.2 33369 - RING, SYNCHRONIZER, NO.3 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 33395 - SLEEVE, TRANSMISSION HUB, NO.3 33398 - HOLDER, SYNCHRONIZER RING 33398 - HOLDER, SYNCHRONIZER RING 33402 - GEAR SUB-ASSY, REVERSE IDLER 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 33411E - NUT(FOR COUNTER GEAR SHAFT) 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) 33421 - GEAR, COUNTER 33428 - GEAR, COUNTERSHAFT 5TH 33428B - BEARING (FOR COUNTER 5TH GEAR) 33451 - SHAFT, REVERSE IDLER GEAR 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) 33481 - GEAR, SPEEDOMETER DRIVE (MTM) 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) 33903 - GEAR SUB-ASSY, INPUT 33903A - PIN, SLOTTED SPRING (FOR INPUT GEAR) 33904 - GEAR SUB-ASSY, COUNTER, FRONT 33933 - HUB, TRANSMISSION CLUTCH, INPUT 33936 - SLEEVE, TRANSMISSION HUB, FRONT 33936 - SLEEVE, TRANSMISSION HUB, FRONT 33937 - KEY, SYNCHROMESH SHIFTING, FRONT 33937 - KEY, SYNCHROMESH SHIFTING, FRONT 33939 - STOPPER, KEY 33941A - BEARING (FOR COUNTER FRONT GEAR FRONT) 33941B - BEARING (FOR COUNTER FRONT GEAR REAR) 33944 - PIECE, GEAR SPLINE, COUNTER ** Std Part ** Std Part
