TOYOTA DYNA TOYOACE WU75D-MDT / POWERTRAIN-CHASSIS / HOIST CYLINDER TRUNNION LIFT ARM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

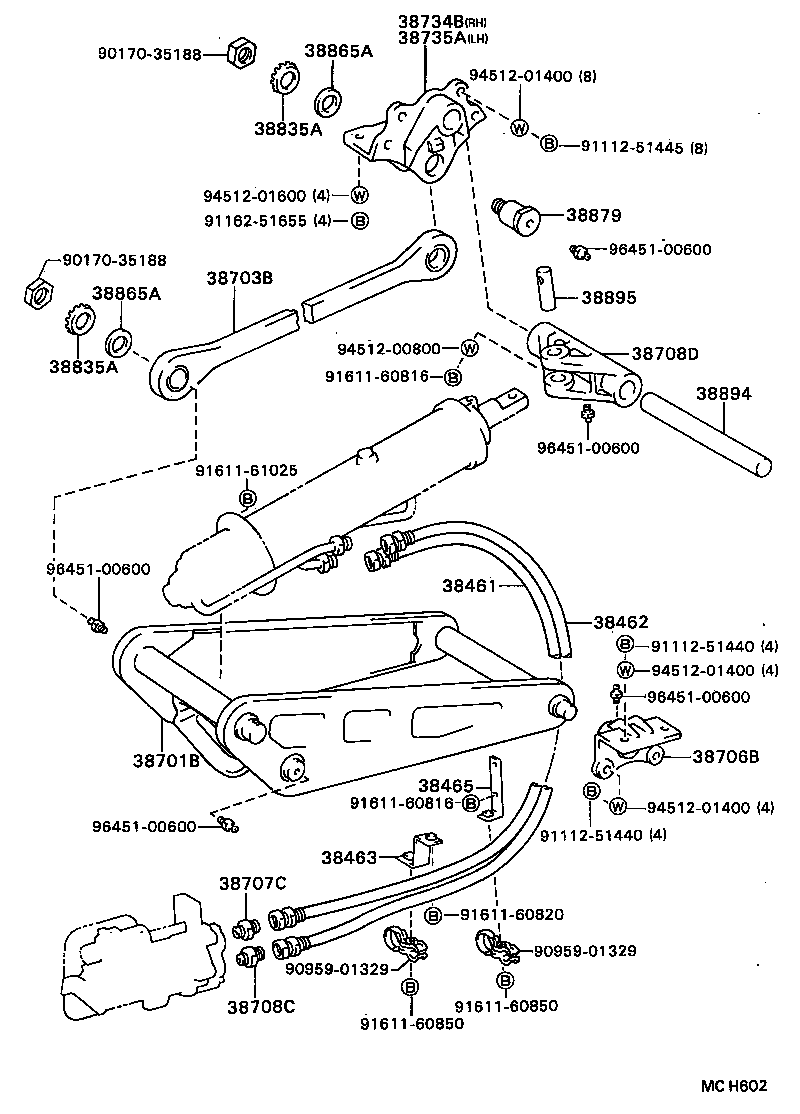

HOIST CYLINDER TRUNNION LIFT ARM

(8708- )WU75..CBU

DYNA TOYOACE | HOIST CYLINDER TRUNNION LIFT ARM 38461 - HOSE, POWER OIL PUMP SUCTION 38462 - HOSE, POWER OIL PUMP DELIVERY 38463 - BRACKET, POWER OIL PUMP HOSE CLAMP 38465 - BRACKET, POWER OIL PUMP HOSE CLUMP 38701B - ARM SUB-ASSY, LIFT 38703B - ARM SUB-ASSY, TENSION 38706B - BRACKET SUB-ASSY, TRUNNION 38707C - UNION (FOR SUCTION HOSE) 38708C - UNION (FOR DELIVERY HOSE) 38708D - CROSSHEAD SUB-ASSY, HOIST CYLINDER 38734B - BRACKET, TENSION ARM, RH 38735A - BRACKET, TENSION ARM, LH 38835A - WASHER, TENSION ARM 38835A - WASHER, TENSION ARM 38865A - WASHER, TENSION ARM SHAFT 38865A - WASHER, TENSION ARM SHAFT 38879 - PIN, TENSION ARM 38894 - SHAFT, CROSSHEAD 38895 - PIN, CROSSHEAD ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
