TOYOTA DYNA TOYOACE WU75D-MDT / TOOL-ENGINE-FUEL / ALTERNATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ALTERNATOR

24V 30A (8708- )1W

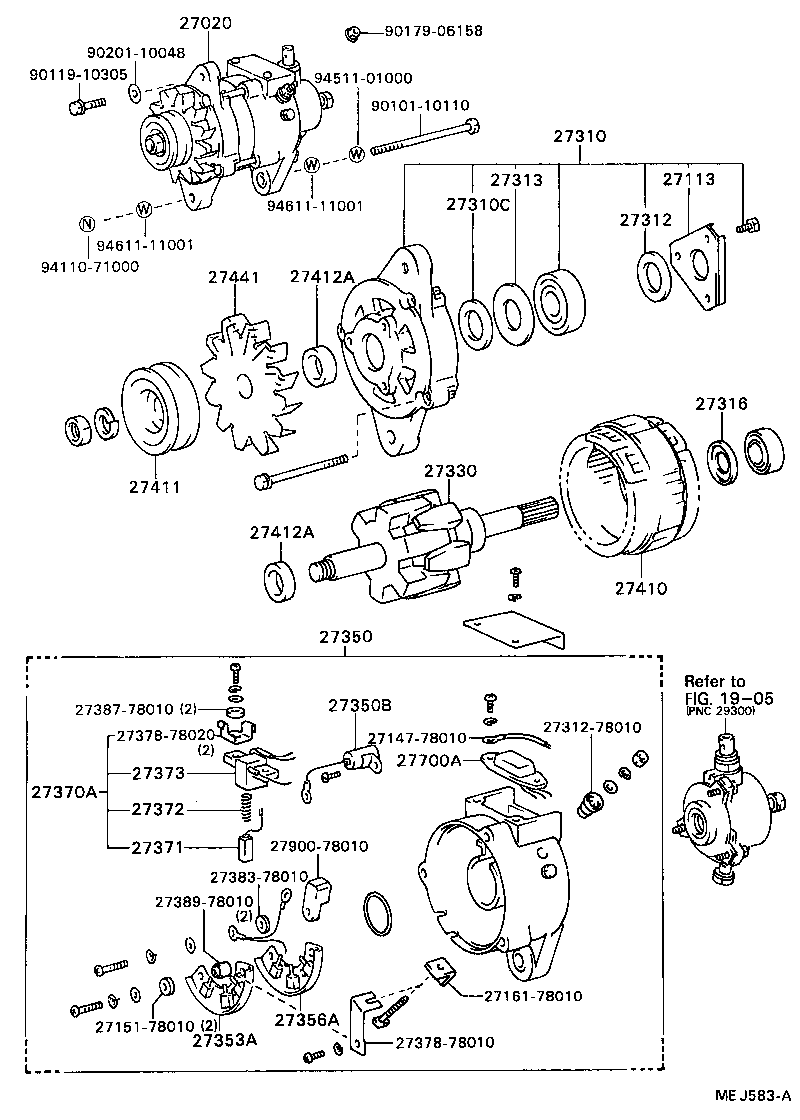

DYNA TOYOACE | ALTERNATOR ** Refer Fig 27020 - ALTERNATOR ASSY 27113 - PLATE, BEARING RETAINER, ALTERNATOR ** Std Part ** Std Part ** Std Part 27310 - FRAME ASSY, DRIVE END, ALTERNATOR 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) 27312 - PLATE, RETAINER ** Std Part 27313 - COVER, ALTERNATOR FELT, INNER NO.2 27316 - PACKING, RETAINER PLATE, ALTERNATOR 27330 - ROTOR ASSY, ALTERNATOR 27350 - FRAME ASSY, RECTIFIER END 27350B - CONDENSER, ALTERNATOR 27353A - HOLDER, W/RECTIFIER 27356A - HOLDER SUB-ASSY, RECTIFIER 27370A - HOLDER ASSY, ALTERNATOR BRUSH 27371 - BRUSH, ALTERNATOR 27372 - SPRING, ALTERNATOR BRUSH 27373 - HOLDER, ALTERNATOR BRUSH, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 27410 - STATOR ASSY, ALTERNATOR 27411 - PULLEY, ALTERNATOR 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) 27441 - FAN, ALTERNATOR 27700A - REGULATOR ASSY, GENERATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
