TOYOTA HIACE TRUCK LH85-MDL3 / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

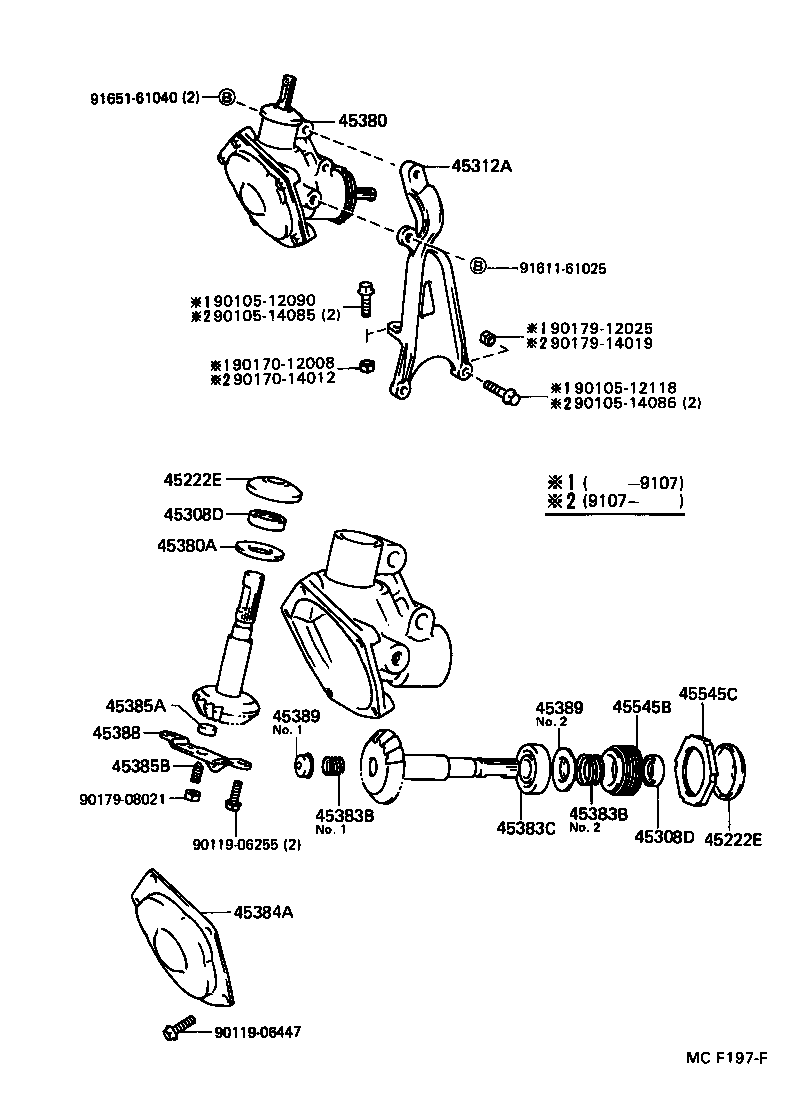

STEERING COLUMN SHAFT

ILLUST NO. 2 OF 2(8710- )LH85,95

HIACE TRUCK | STEERING COLUMN SHAFT 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) 45312A - BRACKET, STEERING BEVEL GEAR HOUSING 45380 - GEAR ASSY, STEERING BEVEL 45380A - WASHER(FOR STEERING BEVEL GEAR) 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) 45384A - COVER, STEERING BEVEL GEAR 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) 45385B - BOLT, SET(FOR LOCK BOLT SEAT) 45388 - PLATE, STEERING BEVEL GEAR 45389 - HOLDER, STEERING BEVEL GEAR SPRING 45389 - HOLDER, STEERING BEVEL GEAR SPRING 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR) 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
