TOYOTA HIACE VAN WAGON LH51G-SGX / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

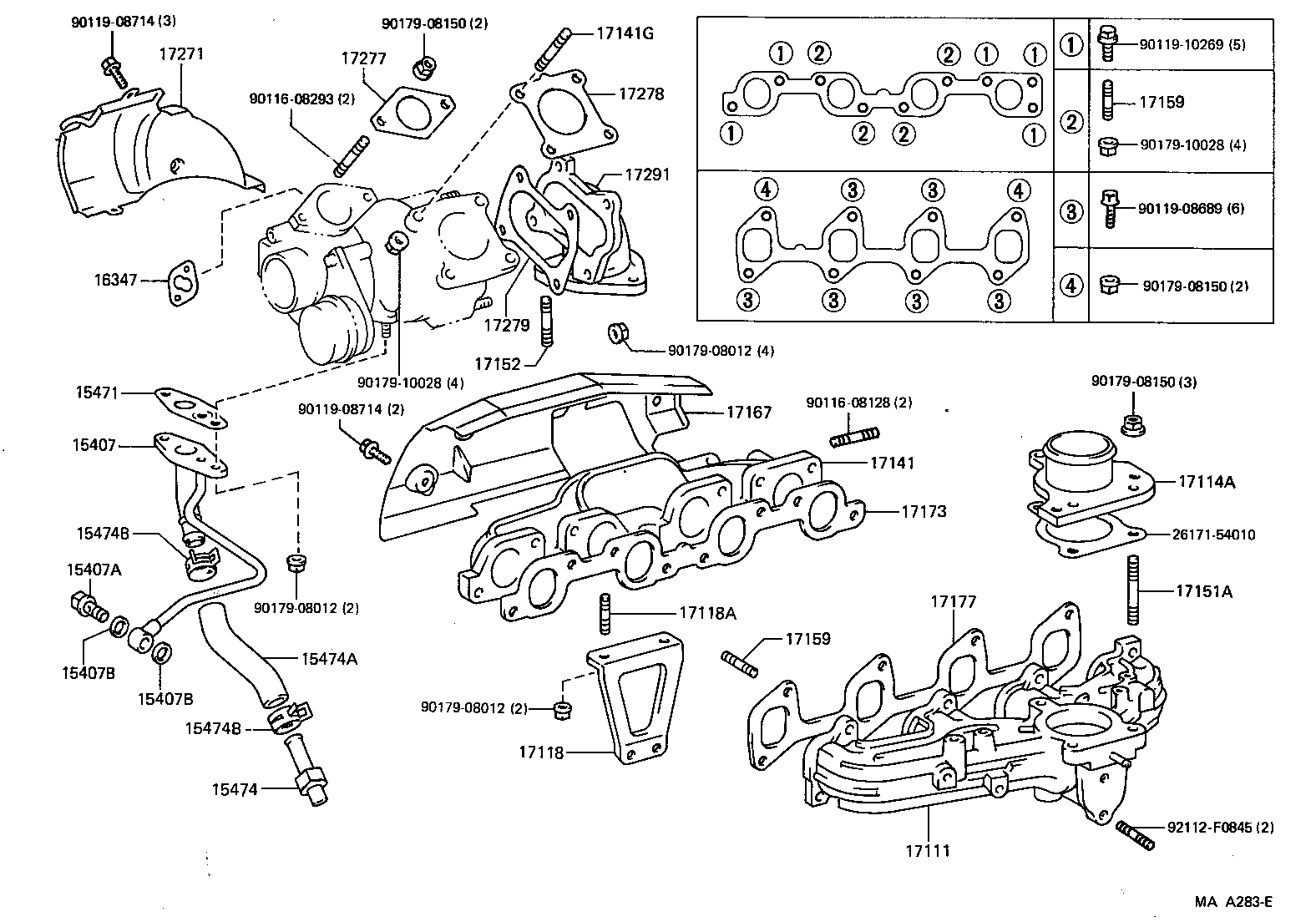

ILLUST NO. 1 OF 2(8708- )2LT

HIACE VAN WAGON | MANIFOLD 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15471 - GASKET, TURBO OIL INLET 15474 - PIPE, TURBO OIL OUTLET 15474A - HOSE, TURBO OIL OUTLET 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 16347 - GASKET, WATER BY-PASS 17111 - MANIFOLD, INTAKE 17114A - FLANGE, INTAKE 17118 - STAY, MANIFOLD 17118A - BOLT, STUD(FOR MANIFOLD STAY) 17141 - MANIFOLD, EXHAUST 17141G - BOLT, STUD(FOR TURBOCHARGER) 17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI) 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17271 - INSULATOR, TURBO, NO.1 17277 - GASKET, COMPRESSOR OUTLET 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17291 - ELBOW, TURBINE OUTLET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
