TOYOTA MARK 2 GX81-ATPQF / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

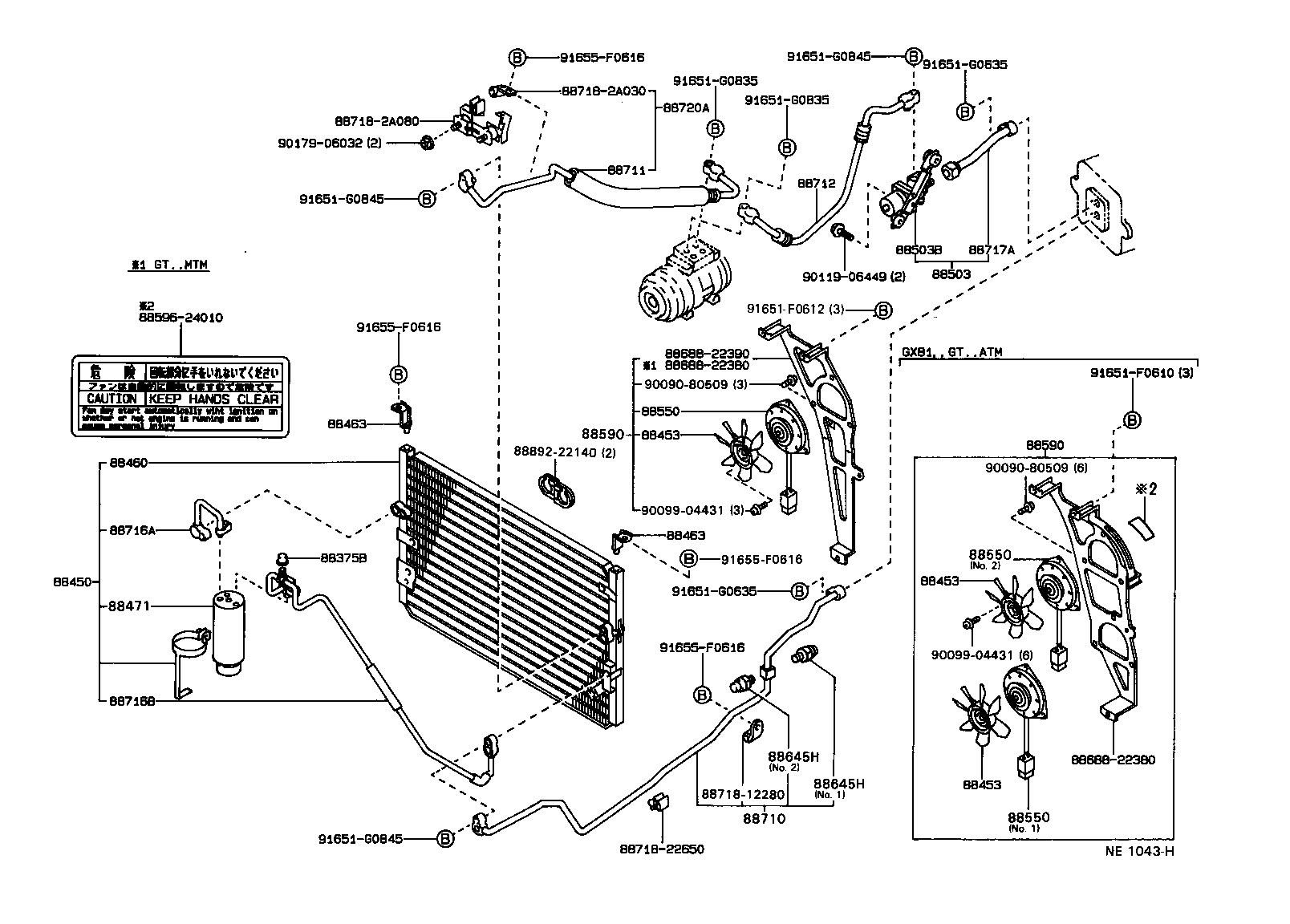

HEATING AIR CONDITIONING COOLER PIPING

(8808-9008)TWT ; (8808- )GX81..4FC..GD

MARK 2 | HEATING AIR CONDITIONING COOLER PIPING 88375B - CAP, SERVICE VALVE, NO.1 88450 - CONDENSER ASSY, W/RECEIVER 88453 - FAN, COOLING (FOR CONDENSER) 88453 - FAN, COOLING (FOR CONDENSER) 88453 - FAN, COOLING (FOR CONDENSER) 88460 - CONDENSER ASSY, COOLER 88463 - BRACKET, COOLER CONDENSER, NO.1 88463 - BRACKET, COOLER CONDENSER, NO.1 88471 - TANK, RECEIVER AIR CONDITIONER 88503 - REGULATOR ASSY, PRESSURE 88503B - REGULATOR SUB-ASSY, PRESSURE 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88590 - BLOWER ASSY, W/SHROUD 88590 - BLOWER ASSY, W/SHROUD ** Std Part 88645H - SWITCH, PRESSURE NO.1 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part 88710 - TUBE ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part 88720A - HOSE & ACCESSORY, AIRCONDITIONER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
