TOYOTA DYNA TOYOACE YU60-MDPJ / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

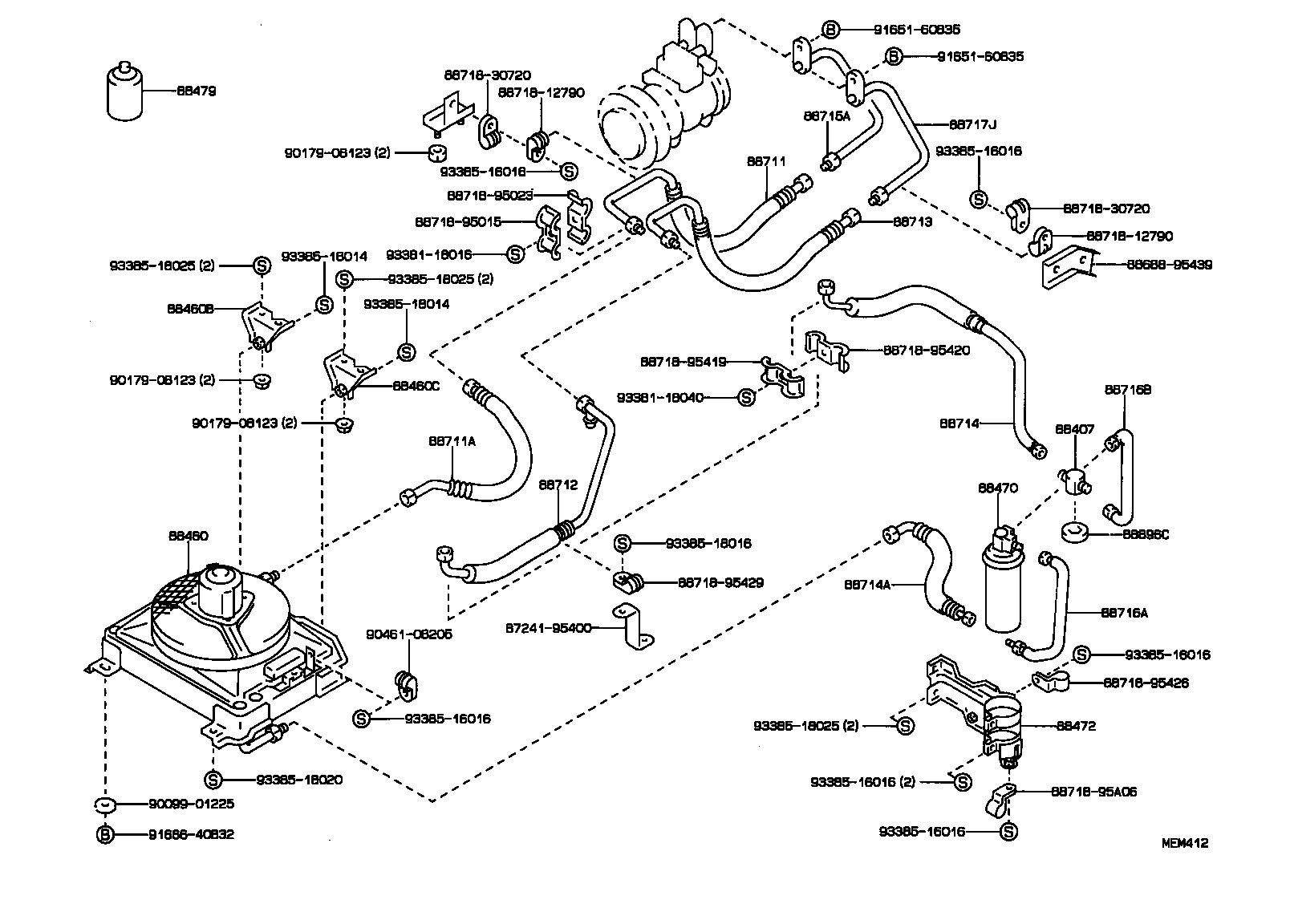

HEATING AIR CONDITIONING COOLER PIPING

(8808-9309)YU6#,70

DYNA TOYOACE | HEATING AIR CONDITIONING COOLER PIPING ** Std Part 88407 - GLASS SUB-ASSY, SIGHT 88460 - CONDENSER ASSY, COOLER 88460B - BRACKET, COOLER CONDENSER, NO.1 88460C - BRACKET, COOLER CONDENSER, NO.2 88470 - RECEIVER & DRYER ASSY, COOLER 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88717J - PIPE, COOLER REFRIGERANT SUCTION, J ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88896C - COVER, COOLER REFRIGERANT PIPE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
