TOYOTA MR2 AW10-WCMSS / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

(8406- )3ALU

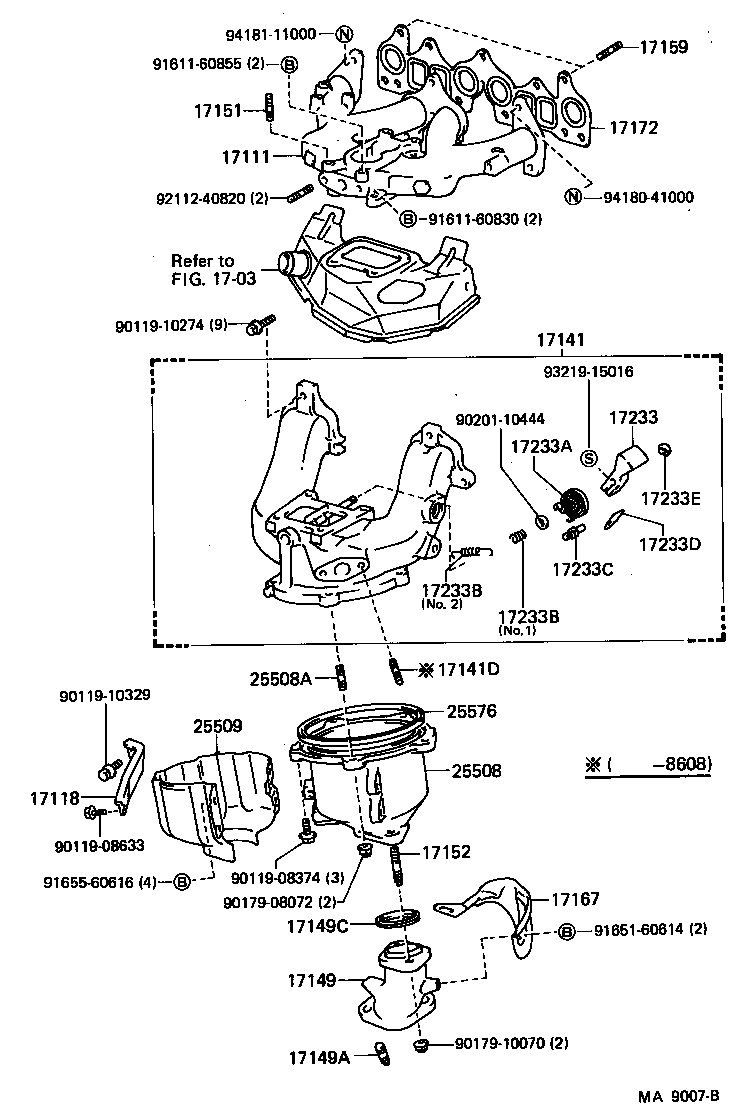

MR2 | MANIFOLD ** Refer Fig 17111 - MANIFOLD, INTAKE 17118 - STAY, MANIFOLD 17141 - MANIFOLD, EXHAUST 17141D - BOLT, STUD(FOR OXYGEN SENSOR) 17149 - EXTENSION, EXHAUST MANIFOLD 17149A - BOLT, STUD(FOR MANIFOLD EXTENSION) 17149C - GASKET(FOR MANIFOLD EXTENSION) 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17172 - GASKET, MANIFOLD TO CYLINDER HEAD 17233 - COUNTER WEIGHT 17233A - SPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT) 17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT) 17233B - SPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT) 17233C - BOLT(FOR COUNTER WEIGHT) 17233D - SHIM(FOR COUNTER WEIGHT) 17233E - RING, E(FOR COUNTER WEIGHT) 25508 - CONVERTER SUB-ASSY, MANIFOLD 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) 25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR 25576 - GASKET, MANIFOLD CONVERTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
