TOYOTA MR2 AW11-WJMQR / BODY / LUGGAGE COMPARTMENT DOOR LOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

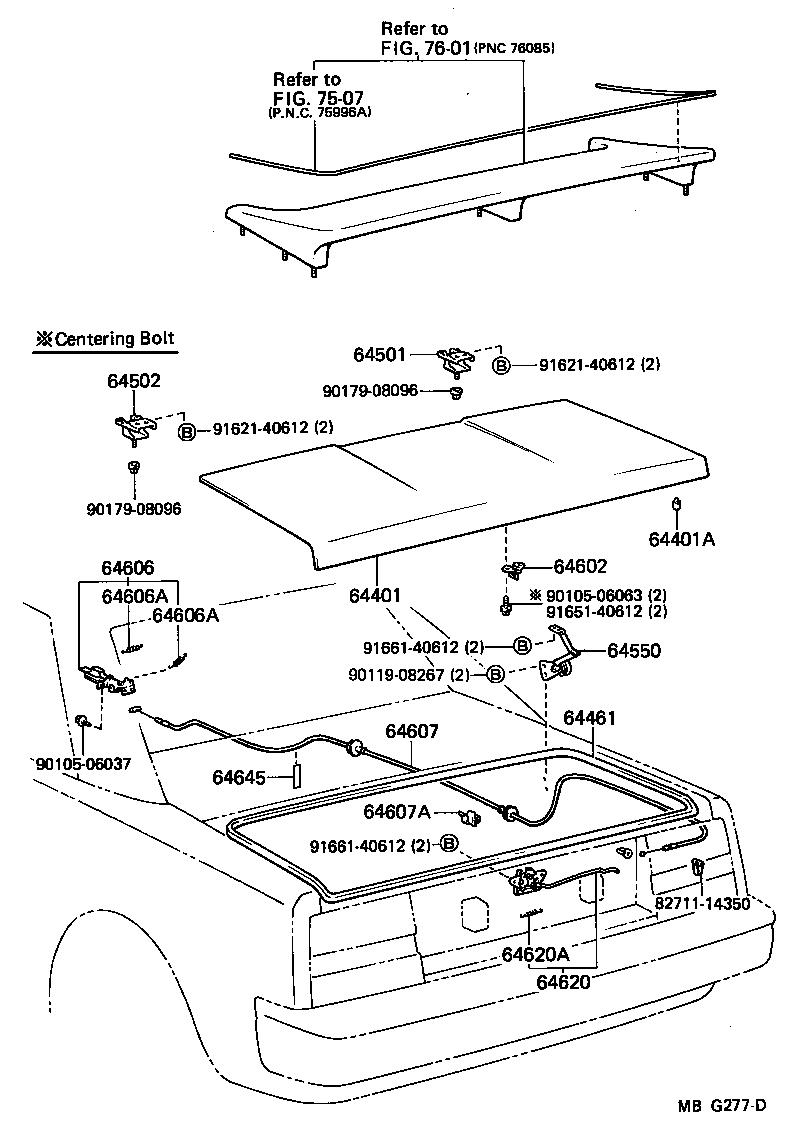

LUGGAGE COMPARTMENT DOOR LOCK

(8406- )

 MR2 |  LUGGAGE COMPARTMENT DOOR LOCK 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH 64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH 64550 - BALANCER ASSY, LUGGAGE COMPARTMENT DOOR 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) 64645 - TAPE, LUGGAGE LOCK CONTROL CABLE ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
