TOYOTA SOARER GZ20-HCMGK / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

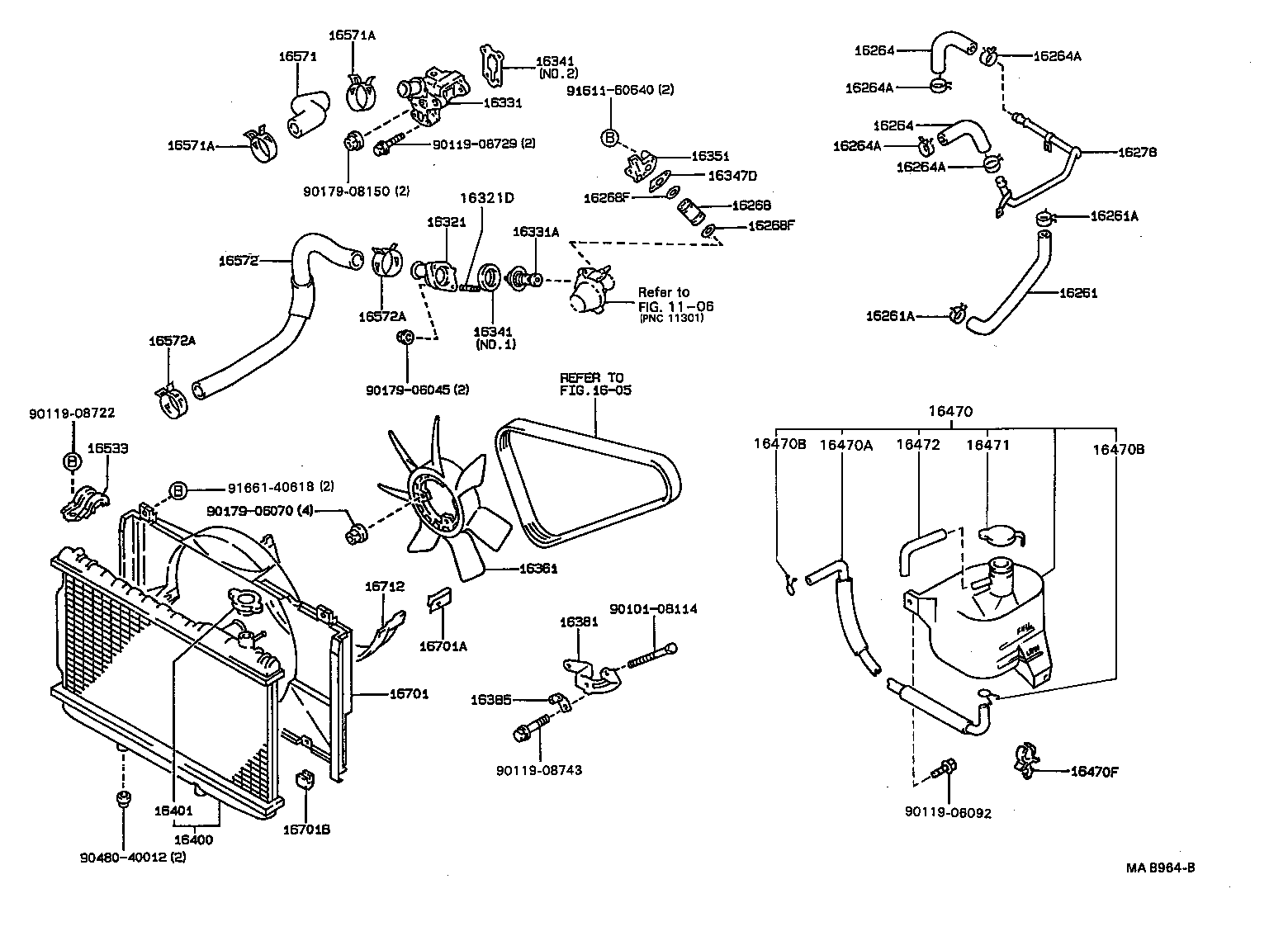

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(8901- )1GFE

SOARER | RADIATOR WATER OUTLET ** Refer Fig ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16268 - PIPE, WATER BY-PASS, NO.1 16268F - RING, O(FOR WATER BY-PASS PIPE) 16268F - RING, O(FOR WATER BY-PASS PIPE) 16278 - PIPE, WATER BY-PASS, NO.2 16321 - INLET, WATER 16321D - BOLT, STUD(FOR WATER INLET) 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16341 - GASKET, WATER OUTLET 16347D - GASKET, WATER BY-PASS 16351 - OUTLET, WATER BY-PASS 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16385 - SLIDER, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16401 - CAP SUB-ASSY, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470F - CLAMP, RADIATOR RESERVE TANK HOSE 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16533 - SUPPORT, RADIATOR, UPPER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16701 - SHROUD SUB-ASSY, FAN 16701A - CLIP(FOR FAN SHROUD) 16701B - CUSHION, FAN SHROUD 16712 - SHROUD, FAN, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
