TOYOTA SOARER GZ20-HCPGE / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

(8801- )1GEU

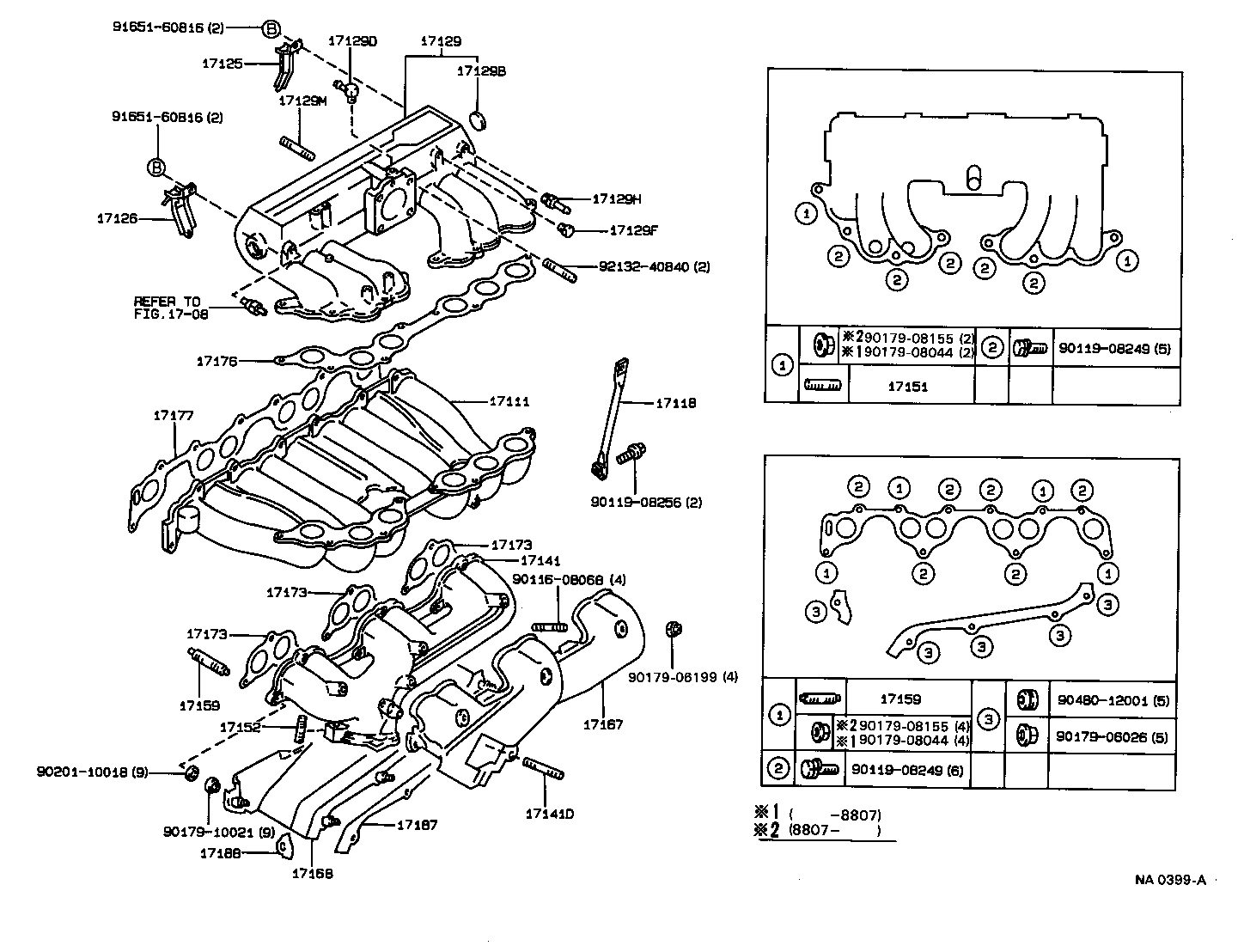

SOARER | MANIFOLD ** Refer Fig 17111 - MANIFOLD, INTAKE 17118 - STAY, MANIFOLD 17125 - STAY, SURGE TANK, NO.1 17126 - STAY, SURGE TANK, NO.2 17129 - TANK, INTAKE AIR SURGE 17129B - PLUG 17129D - UNION, NO.2 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE 17129H - UNION, NO.4 17129M - BOLT, STUD(FOR COLD START INJECTOR) 17141 - MANIFOLD, EXHAUST 17141D - BOLT, STUD(FOR OXYGEN SENSOR) 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17187 - GASKET, HEAT INSULATOR, NO.1 17188 - GASKET, HEAT INSULATOR, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
