TOYOTA CAMRY VISTA SV32-AEMVF / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

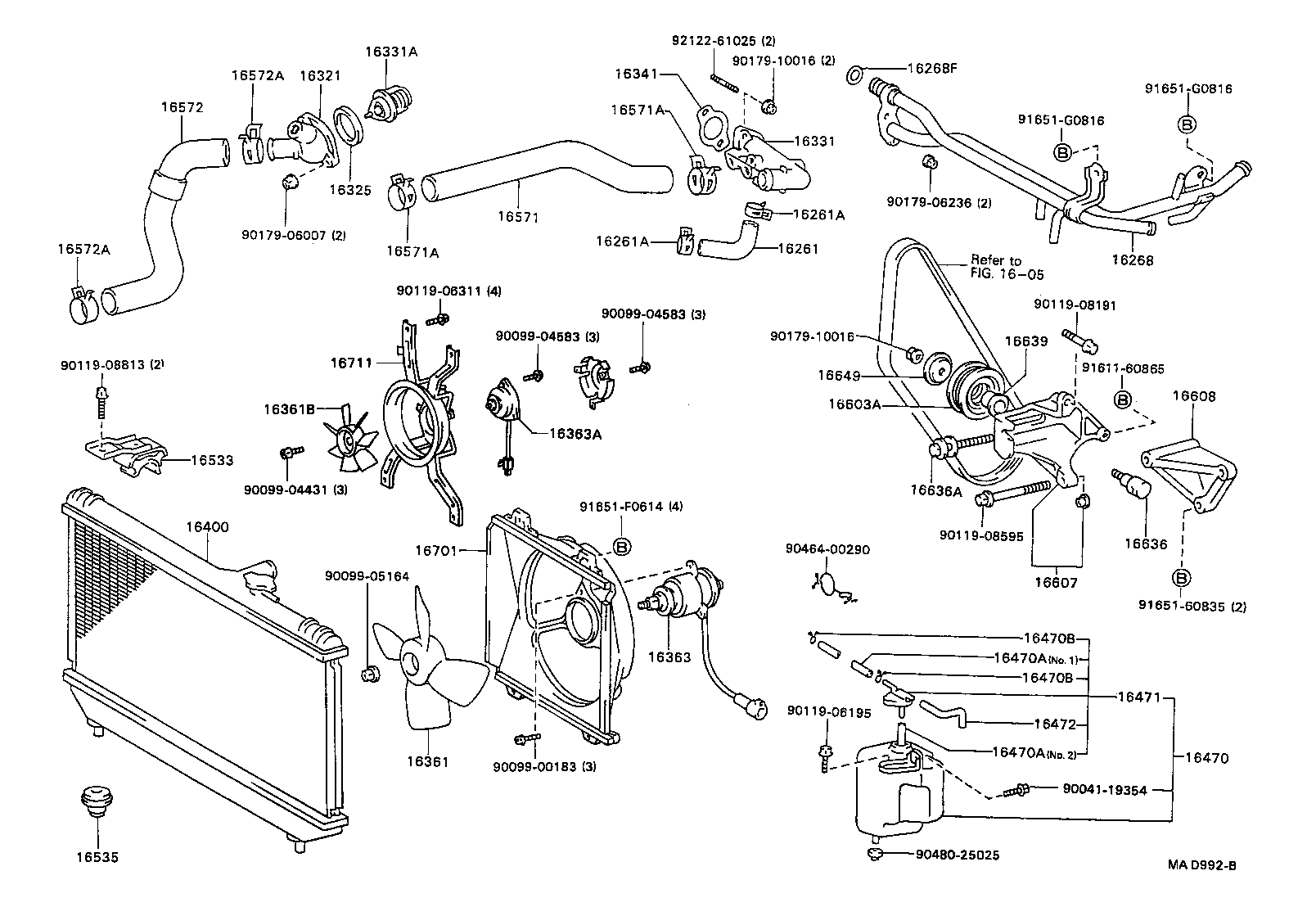

ILLUST NO. 1 OF 2(9007-9206)3SGE

CAMRY VISTA | RADIATOR WATER OUTLET ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16268 - PIPE, WATER BY-PASS, NO.1 16268F - RING, O(FOR WATER BY-PASS PIPE) 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16400 - RADIATOR ASSY 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16603A - PULLEY SUB-ASSY, IDLER, NO.1 16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1 16608 - BRACKET SUB-ASSY, IDLER PULLEY, NO.2 16636 - SHAFT, IDLER PULLY, NO.1 16636A - BOLT(FOR IDLER PULLY TENSION) 16639 - SPACER, IDLER PULLEY 16649 - PLATE, IDLER PULLEY COVER 16701 - SHROUD SUB-ASSY, FAN 16711 - SHROUD, FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
