TOYOTA CELICA ST183C-BKPVF / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

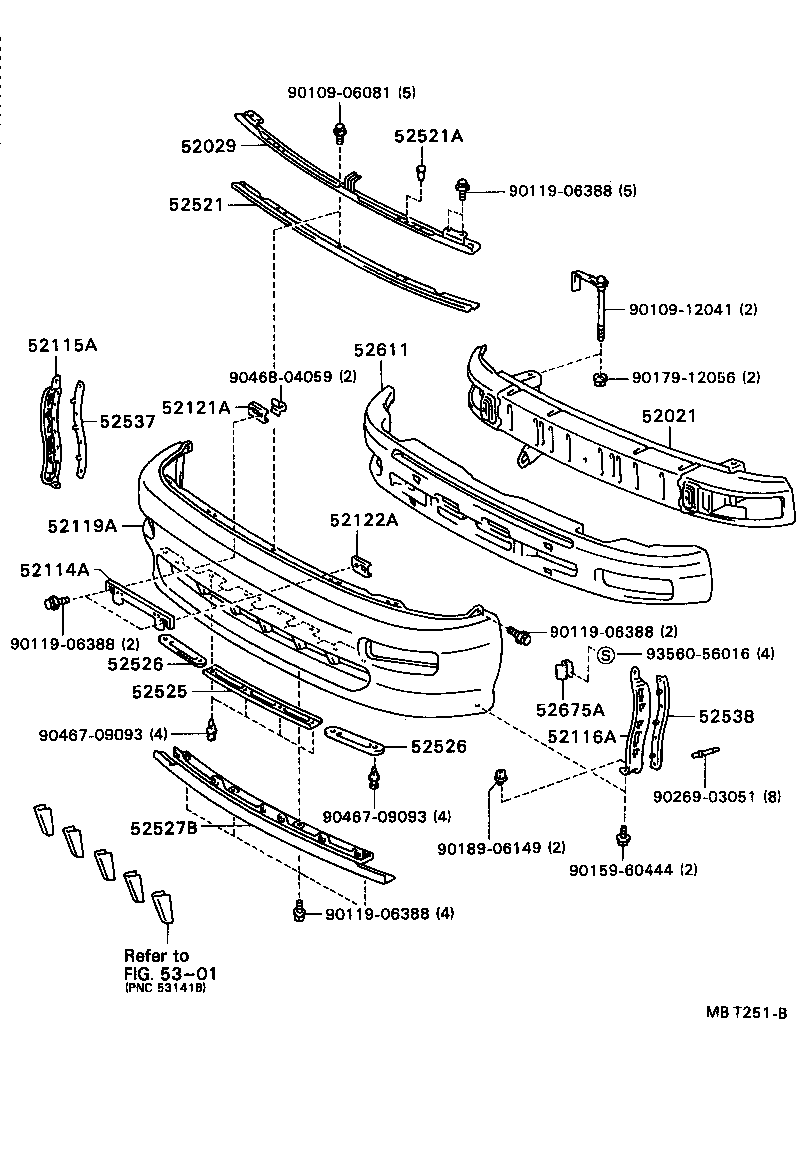

FRONT BUMPER BUMPER STAY

(8909-9108)ST182,183..LB ; (9009-9109)CV

CELICA | FRONT BUMPER BUMPER STAY 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52115A - SUPPORT, FRONT BUMPER SIDE, RH 52116A - SUPPORT, FRONT BUMPER SIDE, LH 52119A - COVER, FRONT BUMPER 52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH 52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH 52521 - RETAINER, FRONT BUMPER, UPPER CENTER 52521A - CLIP(FOR FRONT BUMPER RETAINER) 52525 - RETAINER, FRONT BUMPER, LOWER CENTER 52526 - RETAINER, FRONT BUMPER, LOWER SIDE 52526 - RETAINER, FRONT BUMPER, LOWER SIDE 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 52537 - RETAINER, FRONT BUMPER END, RH 52538 - RETAINER, FRONT BUMPER END, LH 52611 - ABSORBER, FRONT BUMPER ENERGY 52675A - SUPPORT, FRONT BUMPER SIDE, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
