TOYOTA CELICA ST183C-BKPVF / POWERTRAIN-CHASSIS / TRANSMISSION CASE OIL PAN ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

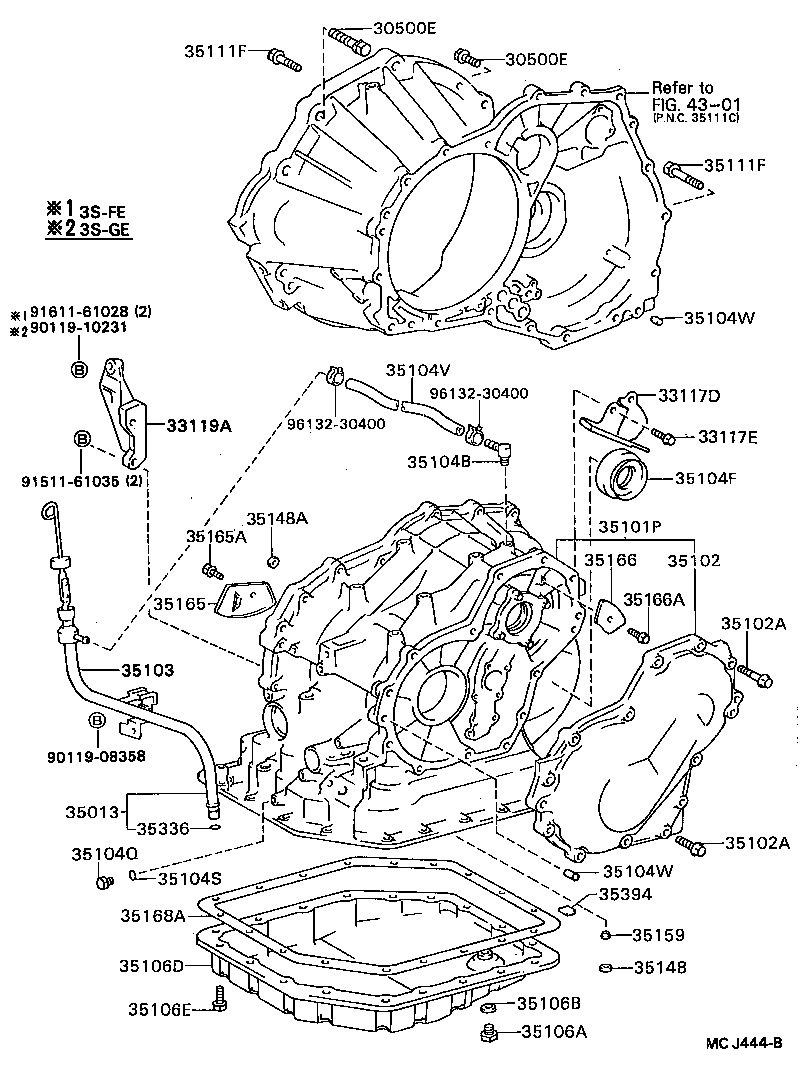

TRANSMISSION CASE OIL PAN ATM

A241E (8909- )ATM

CELICA | TRANSMISSION CASE OIL PAN ATM 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) 33119A - PLATE, STIFFENER, LH(ATM) 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER 35101P - CASE & COVER SUB-ASSY, TRANSAXLE 35102 - COVER SUB-ASSY, TRANSAXLE REAR 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL 35104B - PLUG, BREATHER, NO.1 (ATM) 35104F - SEAL, OIL (FOR TRANSAXLE CASE) 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104V - HOSE (FOR BREATHER PLUG) 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) 35106A - PLUG SUB-ASSY, DRAIN (ATM) 35106B - GASKET, DRAIN PLUG (ATM) 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL 35106E - BOLT (FOR TRANSAXLE OIL PAN) 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) 35148 - GASKET, GOVERNOR APPLY, NO.1 35148A - GASKET, GOVERNOR APPLY, NO.2 35159 - GASKET, BRAKE DRUM 35165 - PLATE, TRANSMISSION CASE, NO.1 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) 35166 - PLATE, TRANSMISSION CASE, NO.3 35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3) 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
