TOYOTA CELICA ST183C-BKPVF / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CAMSHAFT VALVE

(8909- )3SGE

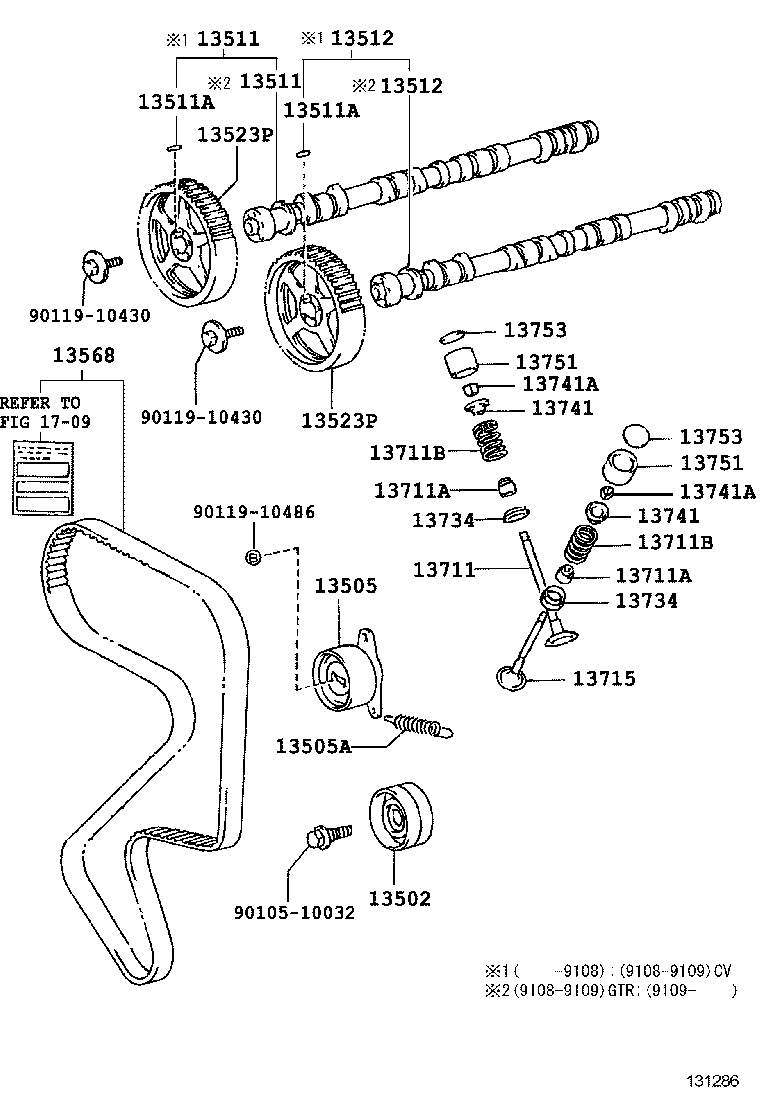

CELICA | CAMSHAFT VALVE 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 13505A - SPRING, TENSION(FOR IDLER) 13511 - CAMSHAFT 13511 - CAMSHAFT 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) 13512 - CAMSHAFT, NO.2 13512 - CAMSHAFT, NO.2 13523P - PULLEY, CAMSHAFT TIMING 13523P - PULLEY, CAMSHAFT TIMING 13568 - BELT, TIMING 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13715 - VALVE, EXHAUST 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13751 - LIFTER, VALVE 13751 - LIFTER, VALVE 13753 - SHIM, VALVE ADJUSTING 13753 - SHIM, VALVE ADJUSTING ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
