TOYOTA CENTURY VG40-GEPQE / BODY / PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT

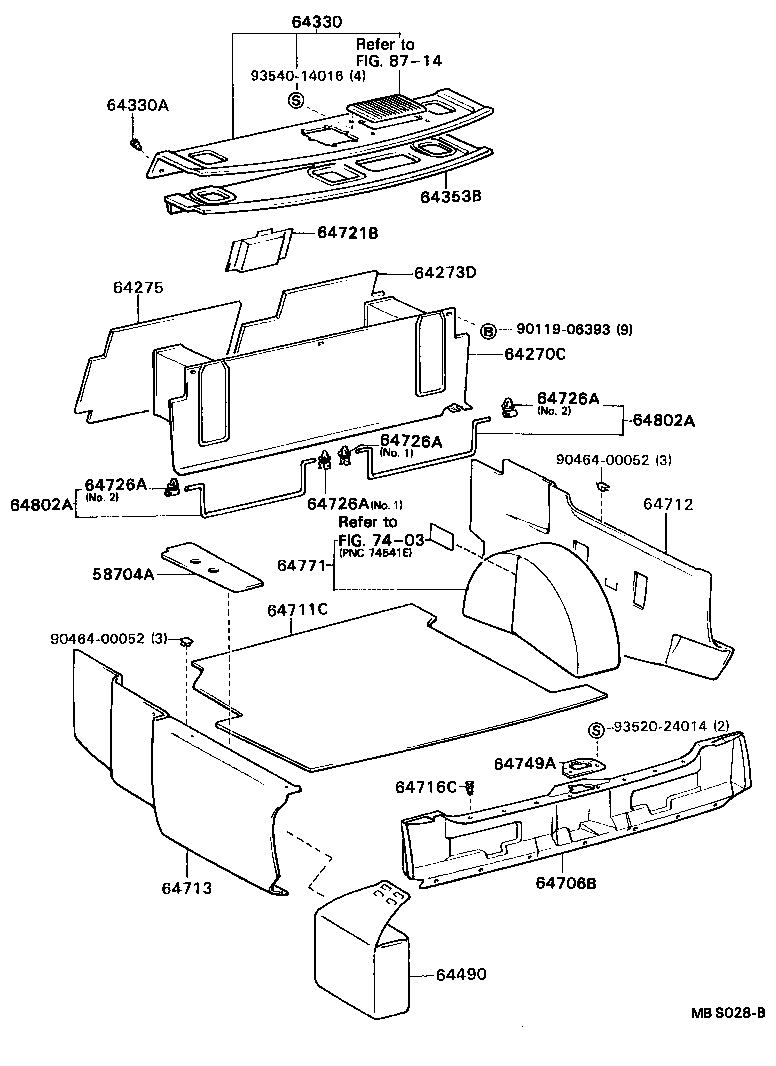

ILLUST NO. 1 OF 2(8709- )

 CENTURY |  PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH 64270C - BOARD ASSY, ROOM PARTITION 64273D - PAD, ROOM PARTITION, NO.1 64275 - PAD, ROOM PARTITION TRIM, NO.2 64330 - PANEL ASSY, PACKAGE TRAY TRIM 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) 64353B - PAD, PACKAGE TRAY TRIM, NO.3 64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE 64706B - COVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR 64711C - CARPET, LUGGAGE COMPARTMENT FLOOR 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH 64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 64726A - CLIP, LUGGAGE TRIM, REAR 64726A - CLIP, LUGGAGE TRIM, REAR 64726A - CLIP, LUGGAGE TRIM, REAR 64726A - CLIP, LUGGAGE TRIM, REAR 64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER 64771 - COVER, SPARE WHEEL 64802A - FRAME SUB-ASSY, BACK WINDOW 64802A - FRAME SUB-ASSY, BACK WINDOW ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
