TOYOTA CENTURY VG45-GEPQE / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

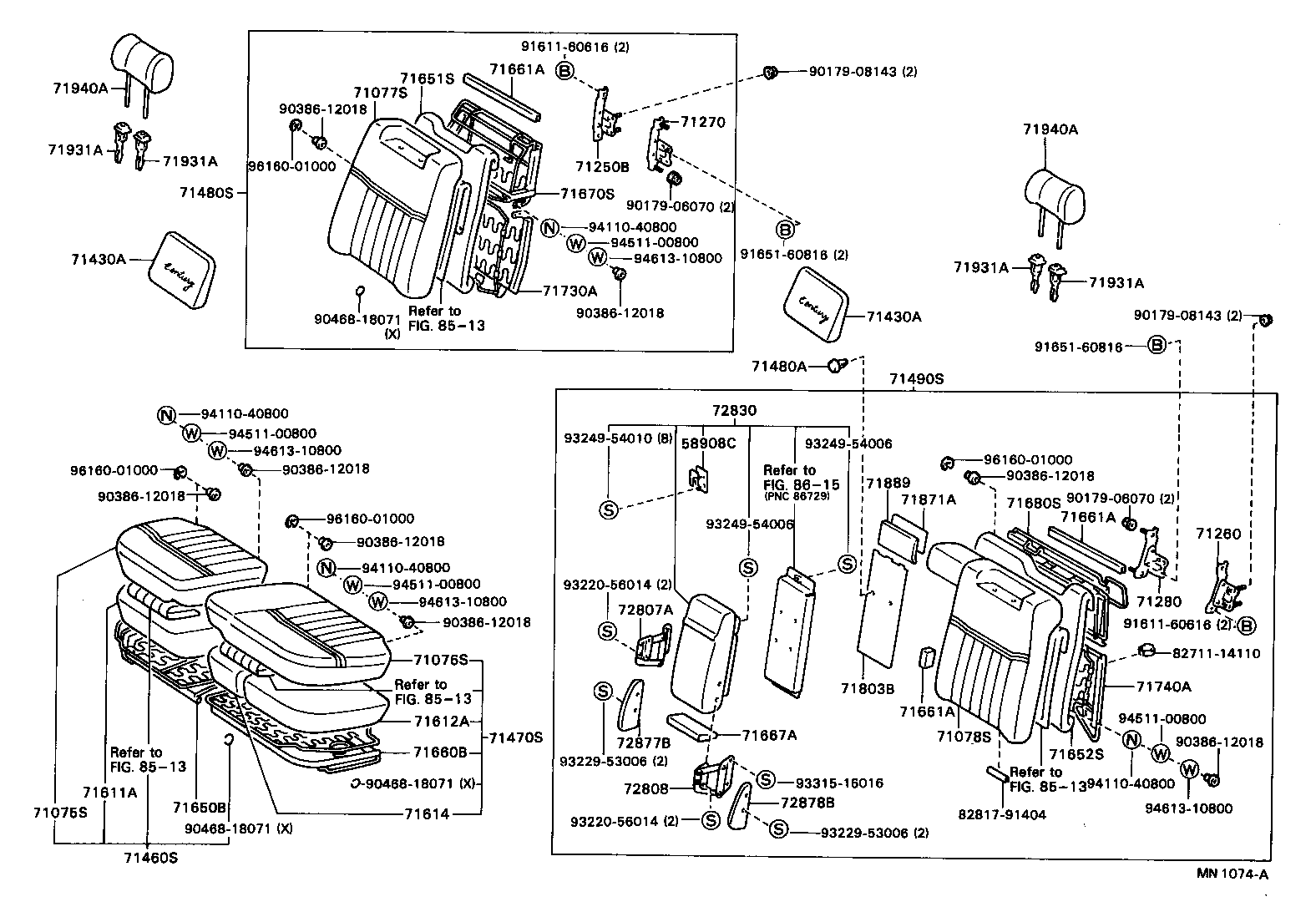

REAR SEAT SEAT TRACK

ILLUST NO. 1 OF 2(9009-9212)

CENTURY | REAR SEAT SEAT TRACK 58908C - LOCK SUB-ASSY, REAR SEAT ARMREST 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71250B - BRACKET ASSY, SEAT, OUTER RH 71260 - BRACKET ASSY, SEAT, OUTER LH 71270 - BRACKET ASSY, SEAT, INNER RH 71280 - BRACKET ASSY, SEAT, INNER LH 71430A - CUSHION ASSY, PASSENGER SEAT 71430A - CUSHION ASSY, PASSENGER SEAT 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71480A - CLIP (FOR REAR SEAT BACK) 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71611A - PAD, REAR SEAT CUSHION, RH 71612A - PAD, REAR SEAT CUSHION, LH 71614 - PAD, REAR SEAT CUSHION, CENTER 71650B - SPRING ASSY, REAR SEAT CUSHION, RH 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71660B - SPRING ASSY, REAR SEAT CUSHION, LH 71661A - PAD, REAR SEAT BACK, UPPER A 71661A - PAD, REAR SEAT BACK, UPPER A 71661A - PAD, REAR SEAT BACK, UPPER A 71667A - PAD, REAR SEAT BACK, CENTER A 71670S - SPRING ASSY, REAR SEAT BACK, RH(FOR SEPARATE SEAT) 71680S - SPRING ASSY, REAR SEAT BACK, LH(FOR SEPARATE SEAT) 71730A - SPRING ASSY, REAR SEAT BACK, LOWER RH 71740A - SPRING ASSY, REAR SEAT BACK, LOWER LH 71803B - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE 71871A - BOARD, RR SEAT ARMREST HOLE 71889 - PAD, REAR SEAT BACK BOARD 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 72807A - LINK SUB-ASSY, REAR SEAT CENTER ARMREST, RH 72808 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST, LH 72830 - ARMREST ASSY, REAR SEAT, CENTER 72877B - COVER, SEAT ARMREST, RH 72878B - COVER, SEAT ARMREST, LH ** Std Part ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
