TOYOTA CROWN GS131-ATPSR / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

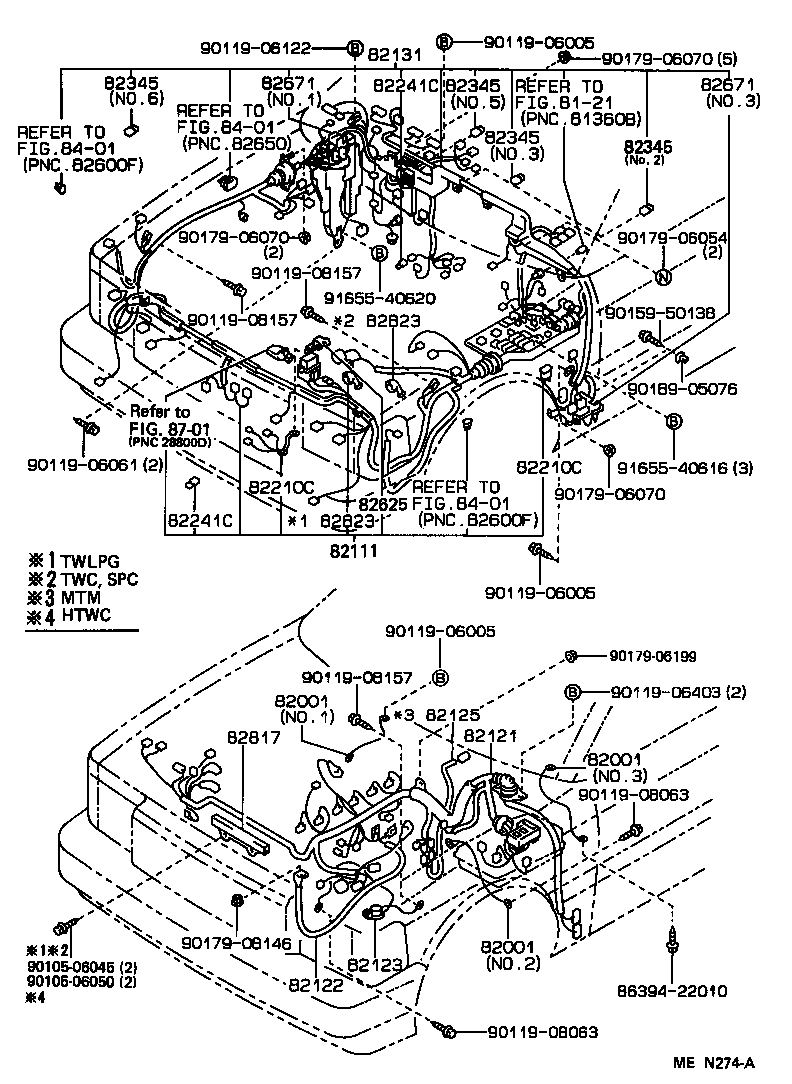

ILLUST NO. 1 OF11(8709- )GS13#

 CROWN |  WIRING CLAMP ** Refer Fig 82001 - CABLE, BOND, NO.1 82001 - CABLE, BOND, NO.1 82001 - CABLE, BOND, NO.1 82111 - WIRE, ENGINE ROOM MAIN 82121 - WIRE, ENGINE 82122 - WIRE, ENGINE, NO.2 82123 - WIRE, ENGINE, NO.3 82125 - WIRE, TRANSMISSION 82131 - WIRE, COWL 82210C - FUSIBLE LINK 82210C - FUSIBLE LINK 82241C - WIRE, RELAY 82241C - WIRE, RELAY 82345 - DIODE 82345 - DIODE 82345 - DIODE 82345 - DIODE 82625 - TERMINAL, FUSIBLE LINK 82671 - BLOCK, JUNCTION 82671 - BLOCK, JUNCTION 82817 - PROTECTOR, WIRING HARNESS, NO.1 82823 - CAP, TERMINAL, NO.1 82823 - CAP, TERMINAL, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
