TOYOTA CROWN GS131-ATPSR / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

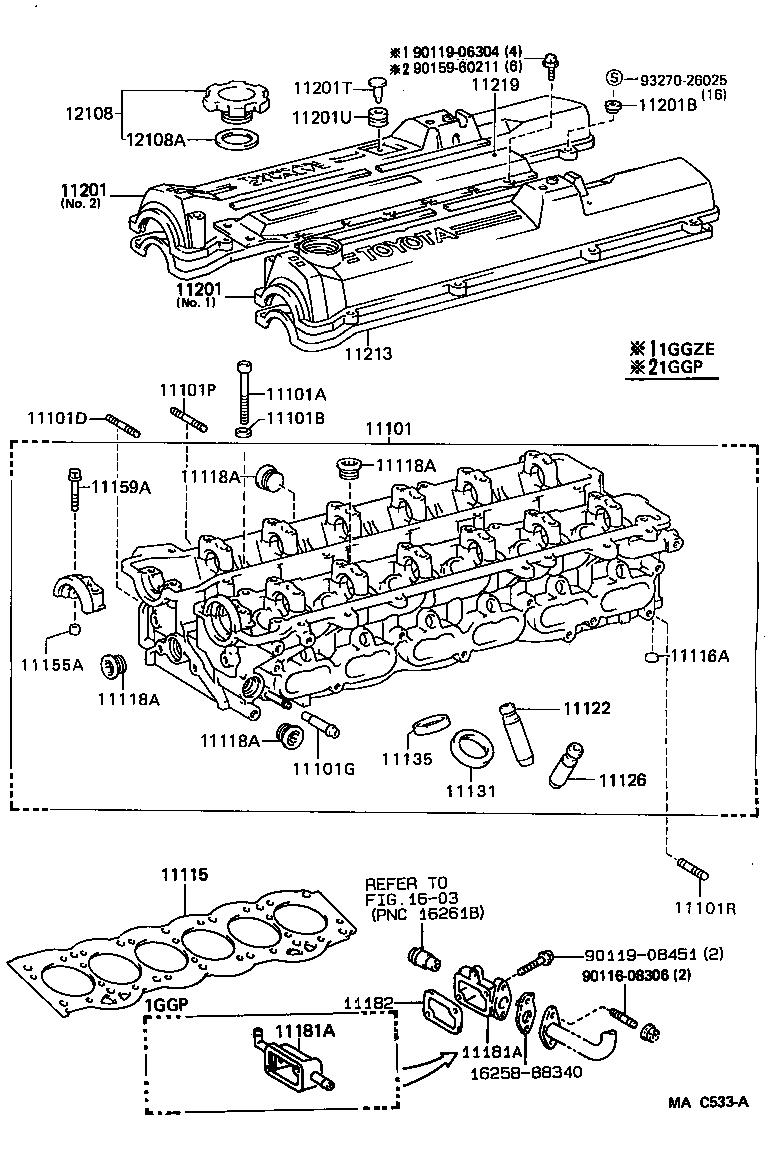

CYLINDER HEAD

(8908- )1GGP,1GGZE

CROWN | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101D - BOLT, STUD(FOR WATER OUTLET) 11101G - UNION(FOR CYLINDER HEAD) 11101P - BOLT, STUD(FOR DISTRIBUTOR) 11101R - BOLT, STUD(FOR FUEL PIPE) 11115 - GASKET, CYLINDER HEAD 11116A - PLUG, TIGHT, NO.1 11118A - PLUG, STRAIGHT, NO.1 11118A - PLUG, STRAIGHT, NO.1 11118A - PLUG, STRAIGHT, NO.1 11118A - PLUG, STRAIGHT, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11155A - PIN, RING W/HEAD 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11181A - COVER, CYLINDER HEAD, REAR 11181A - COVER, CYLINDER HEAD, REAR 11182 - GASKET, CYLINDER HEAD REAR PLATE 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201T - PIN(FOR CYLINDER HEAD COVER) 11201U - BUSH(FOR CYLINDER HEAD COVER) 11213 - GASKET, CYLINDER HEAD COVER 11219 - COVER, CYLINDER HEAD, NO.3 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
