TOYOTA CROWN UZS131-AESUK / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

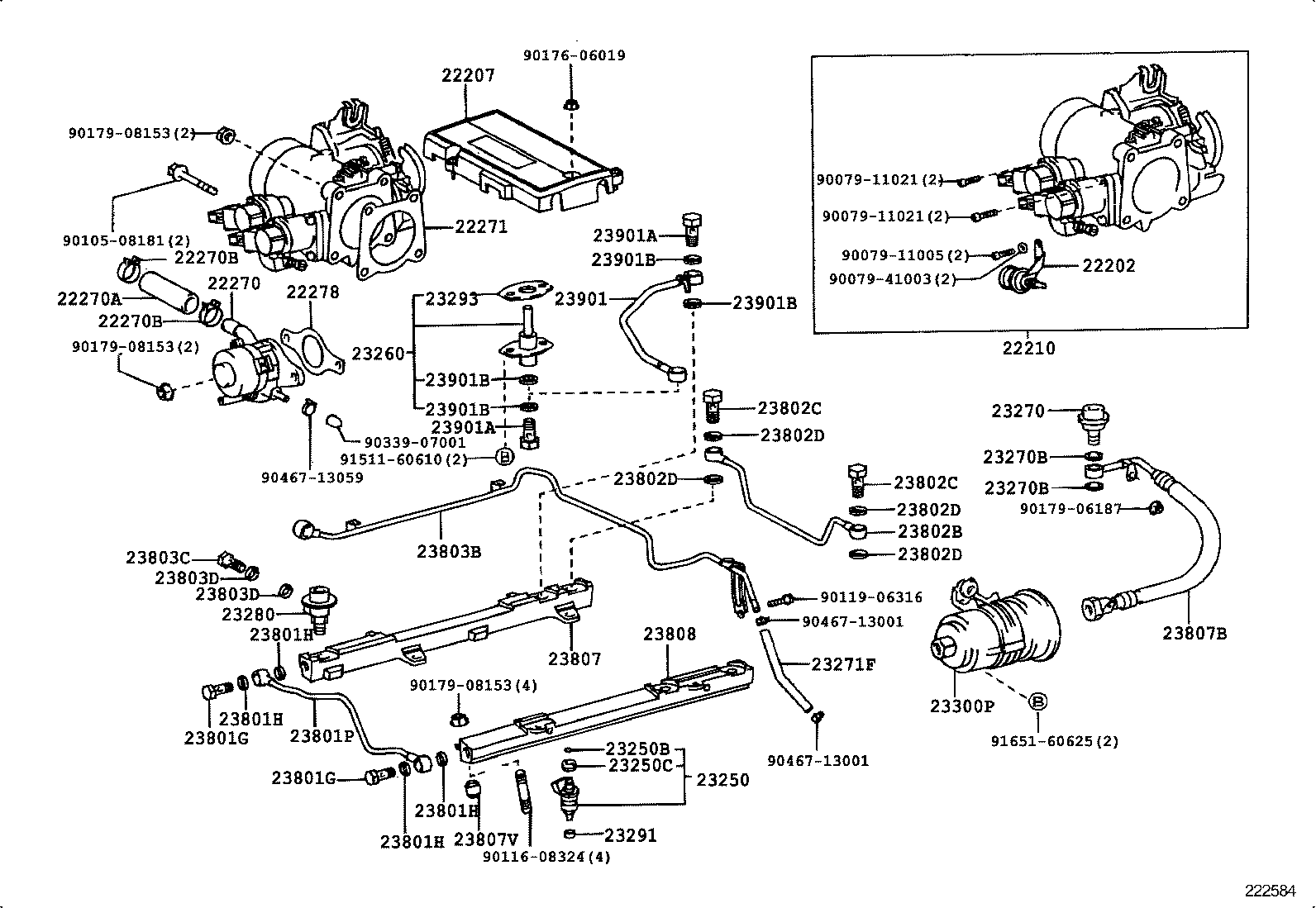

ILLUST NO. 1 OF 3(8908- )1UZFE

CROWN | FUEL INJECTION SYSTEM 22202 - DASH POT SUB-ASSY 22207 - COVER SUB-ASSY, THROTTLE BODY 22210 - BODY ASSY, THROTTLE 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) 22270B - CLIP(FOR AIR HOSE) 22270B - CLIP(FOR AIR HOSE) 22271 - GASKET, THROTTLE BODY 22278 - GASKET, IDLE SPEED CONTROL VALVE 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23260 - INJECTOR ASSY, COLD START FUEL 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23271F - HOSE, FUEL 23280 - REGULATOR ASSY, FUEL PRESSURE 23291 - INSULATOR, INJECTOR VIBRATION 23293 - GASKET, COLD START INJECTOR 23300P - FILTER, FUEL(FOR EFI) 23801G - BOLT, UNION(FOR FUEL PIPE) 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802B - PIPE SUB-ASSY, FUEL, NO.2 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23803B - PIPE SUB-ASSY, FUEL, NO.3 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807B - HOSE, FUEL DELIVERY PIPE 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 23901 - TUBE SUB-ASSY, FUEL 23901A - BOLT, UNION(FOR FUEL TUBE) 23901A - BOLT, UNION(FOR FUEL TUBE) 23901B - GASKET(FOR FUEL TUBE) 23901B - GASKET(FOR FUEL TUBE) 23901B - GASKET(FOR FUEL TUBE) 23901B - GASKET(FOR FUEL TUBE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
