TOYOTA CROWN YS130-AESDN / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

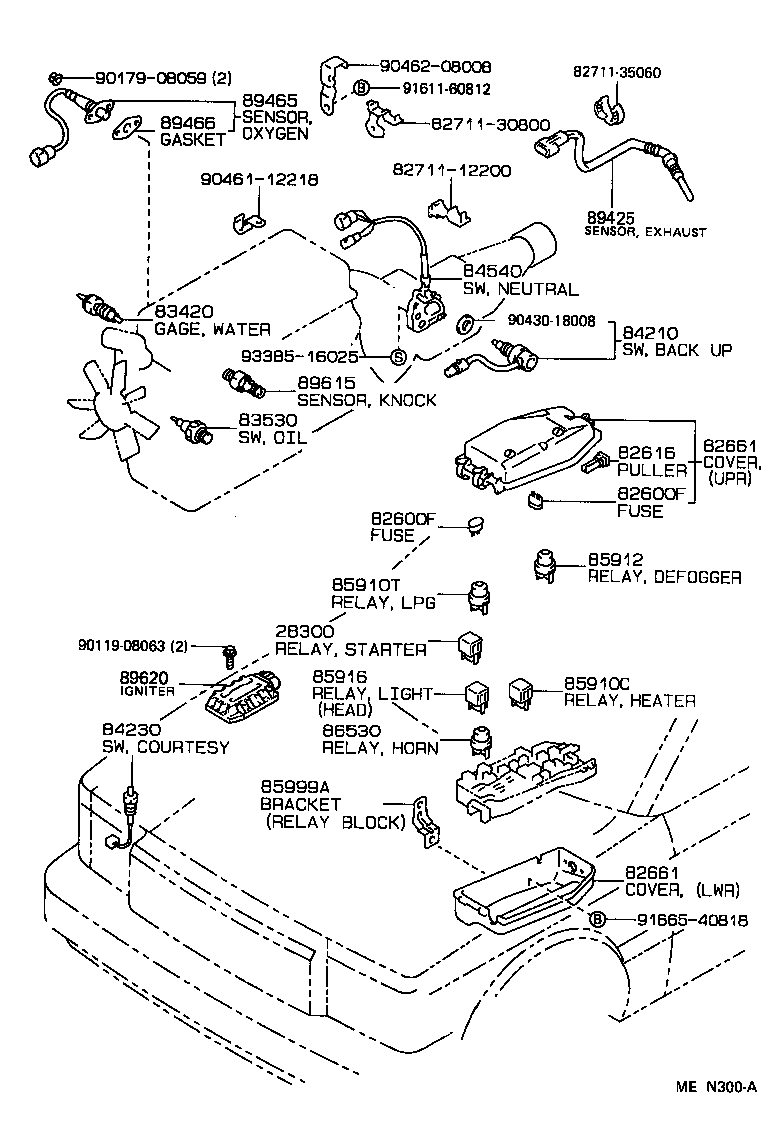

ILLUST NO. 1 OF 8(8908- )YS130

CROWN | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82661 - COVER, RELAY BLOCK, NO.1 82661 - COVER, RELAY BLOCK, NO.1 ** Std Part ** Std Part ** Std Part 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) 84540 - SWITCH ASSY, NEUTRAL START 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910T - RELAY, LPG 85912 - RELAY, DEFOGGER 85916 - RELAY, LIGHT CONTROL 85999A - BRACKET, RELAY, NO.2 86530 - RELAY ASSY, HORN 89425 - SENSOR, EXHAUST GAS TEMPERATURE 89465 - SENSOR, OXYGEN 89466 - GASKET, OXYGEN SENSOR 89615 - SENSOR, KNOCK CONTROL 89620 - IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
