TOYOTA LAND CRUISER VAN HZJ81V-RNMNS / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

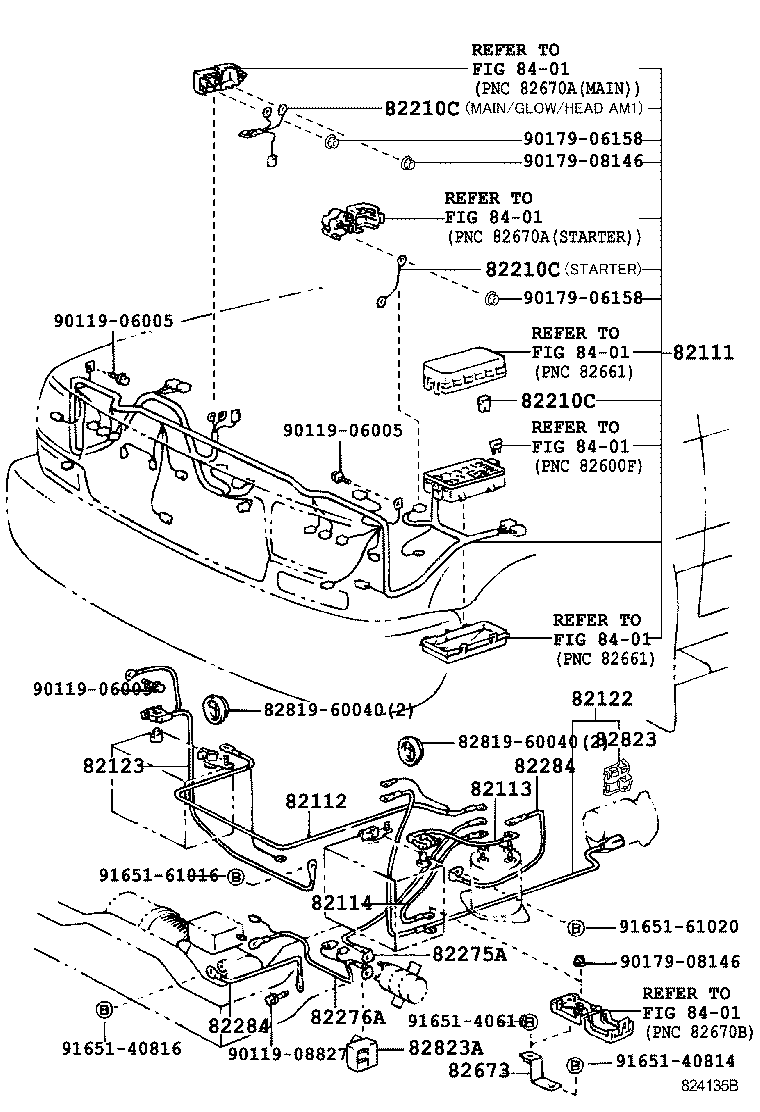

ｴﾝｼﾞﾝﾙｰﾑ & ｳｲﾝﾁ ﾜｲﾔ ILLUST NO. 1 OF 9(9001-9501)HDJ81,HZJ81

LAND CRUISER VAN | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82113 - WIRE, ENGINE ROOM, NO.3 82114 - WIRE, ENGINE ROOM, NO.4 82122 - WIRE, ENGINE, NO.2 82123 - WIRE, ENGINE, NO.3 82210C - FUSIBLE LINK 82210C - FUSIBLE LINK 82210C - FUSIBLE LINK 82275A - CABLE, BATTERY TO MAGNET SWITCH 82276A - CABLE, MAGNET SWITCH TO WINCH 82284 - WIRE, EARTH 82284 - WIRE, EARTH 82673 - BRACKET, JUNCTION BLOCK ** Std Part ** Std Part 82823 - CAP, TERMINAL, NO.1 82823A - CAP, TERMINAL, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
