TOYOTA TOWN MASTERACE V WG KR27V-QDFE / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

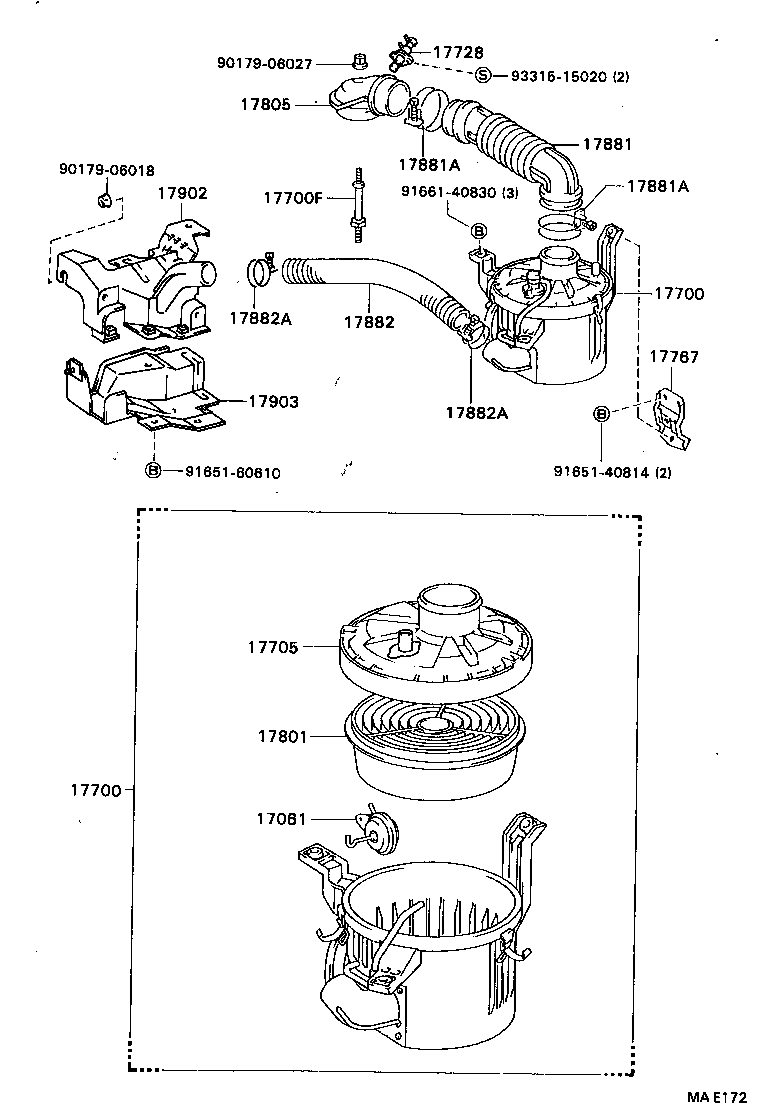

ILLUST NO. 1 OF 2(9008- )5KJ

TOWN MASTERACE V WG | AIR CLEANER 17061 - DIAPHRAGM SUB-ASSY 17700 - CLEANER ASSY, AIR 17700 - CLEANER ASSY, AIR 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) 17705 - CAP SUB-ASSY, AIR CLEANER 17728 - VALVE, THERMOSTATIC 17767 - BRACKET, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805 - CONNECTOR SUB-ASSY, INTAKE AIR 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
