TOYOTA LAND CRUISER S T H T FJ75-MR3 / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

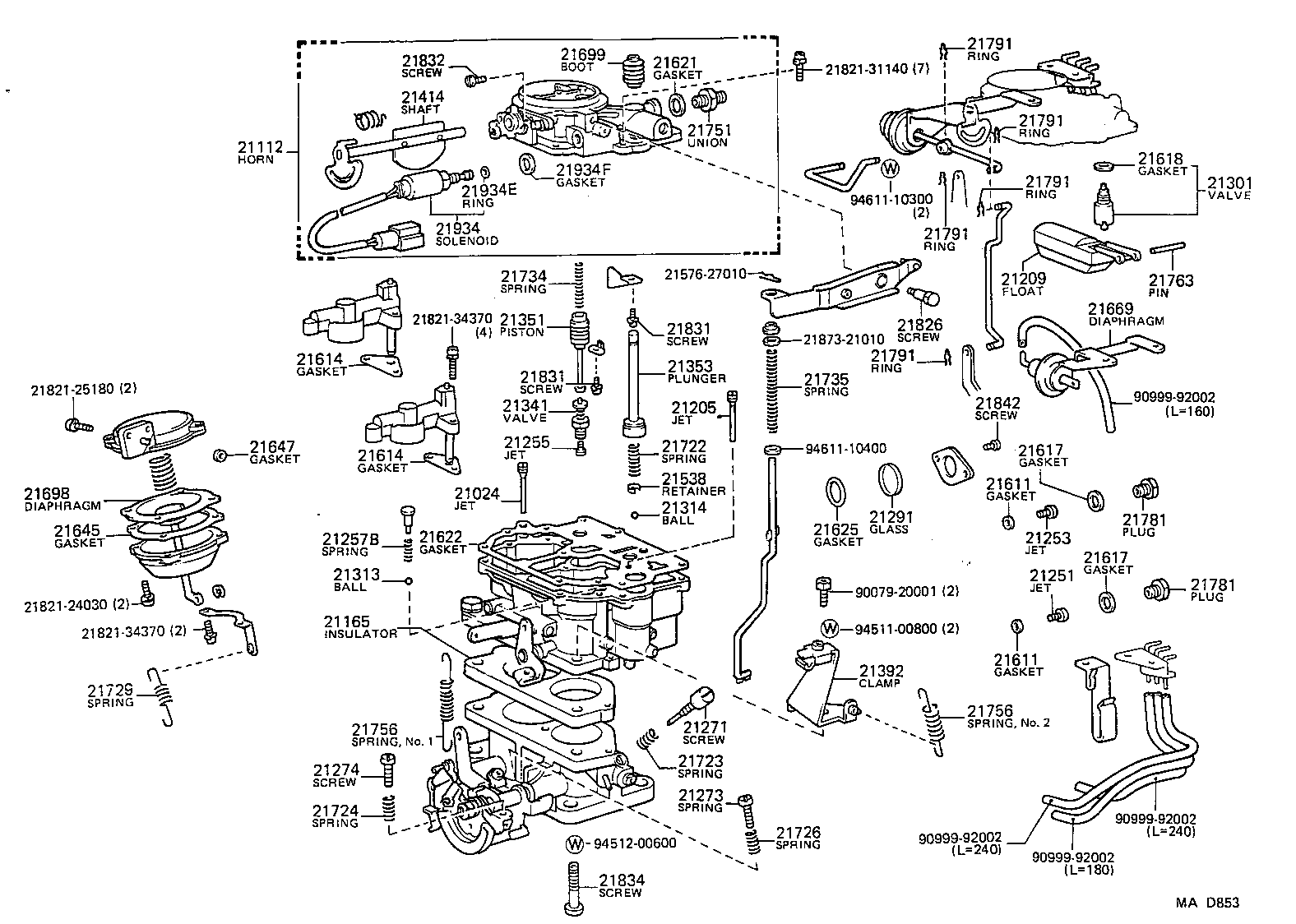

CARBURETOR

(9006-9208)3F

 LAND CRUISER S T H T |  CARBURETOR 21024 - JET SUB-ASSY, 2ND 21112 - HORN, AIR 21165 - INSULATOR 21205 - JET SUB-ASSY, SLOW 21209 - FLOAT SUB-ASSY 21251 - JET, 1ST MAIN 21253 - JET, 2ND MAIN 21255 - JET, POWER 21257B - SPRING(FOR PUMP JET) 21271 - SCREW, IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21274 - SCREW, 1ST THROTTLE ADJUSTING 21291 - GLASS, LEVEL GAGE 21301 - VALVE SUB-ASSY, NEEDLE 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) 21341 - VALVE, POWER 21351 - PISTON, POWER 21353 - PLUNGER, PUMP 21392 - CLAMP, CHOKE WIRE 21414 - SHAFT, CHOKE 21538 - RETAINER, BALL CHECK  ** Std Part 21611 - GASKET, MAIN JET 21611 - GASKET, MAIN JET 21614 - GASKET, VENTURI 21614 - GASKET, VENTURI 21617 - GASKET, MAIN PASSAGE PLUG 21617 - GASKET, MAIN PASSAGE PLUG 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21622 - GASKET, AIR HORN 21625 - GASKET, LEVEL GAGE 21645 - GASKET, DIAPHRAGM, CAP 21647 - GASKET, DIAPHRAGM HOUSING CAP 21669 - DIAPHRAGM 21698 - DIAPHRAGM 21699 - BOOT(FOR PUMP PLUNGER) 21722 - SPRING, PUMP DAMPING 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21726 - SPRING, 1ST IDLE ADJUSTING 21729 - SPRING, 1ST THROTTLE BACK 21734 - SPRING, POWER PISTON 21735 - SPRING, PUMP ARM 21751 - UNION, NIPPLE 21756 - SPRING, BACK(FOR THROTTLE SHAFT) 21756 - SPRING, BACK(FOR THROTTLE SHAFT) 21763 - PIN, FLOAT LEVER 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 21826 - SCREW, PUMP ARM SET 21831 - SCREW, POWER PISTON STOP 21831 - SCREW, POWER PISTON STOP 21832 - SCREW(FOR CHOKE LEVER ADAPTER SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)  ** Std Part 21934 - SOLENOID, THROTTLE VALVE 21934E - RING, O(FOR SOLENOID VALVE) 21934F - GASKET  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
