TOYOTA SPRINTER TRUENO AE92-BCMXR / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

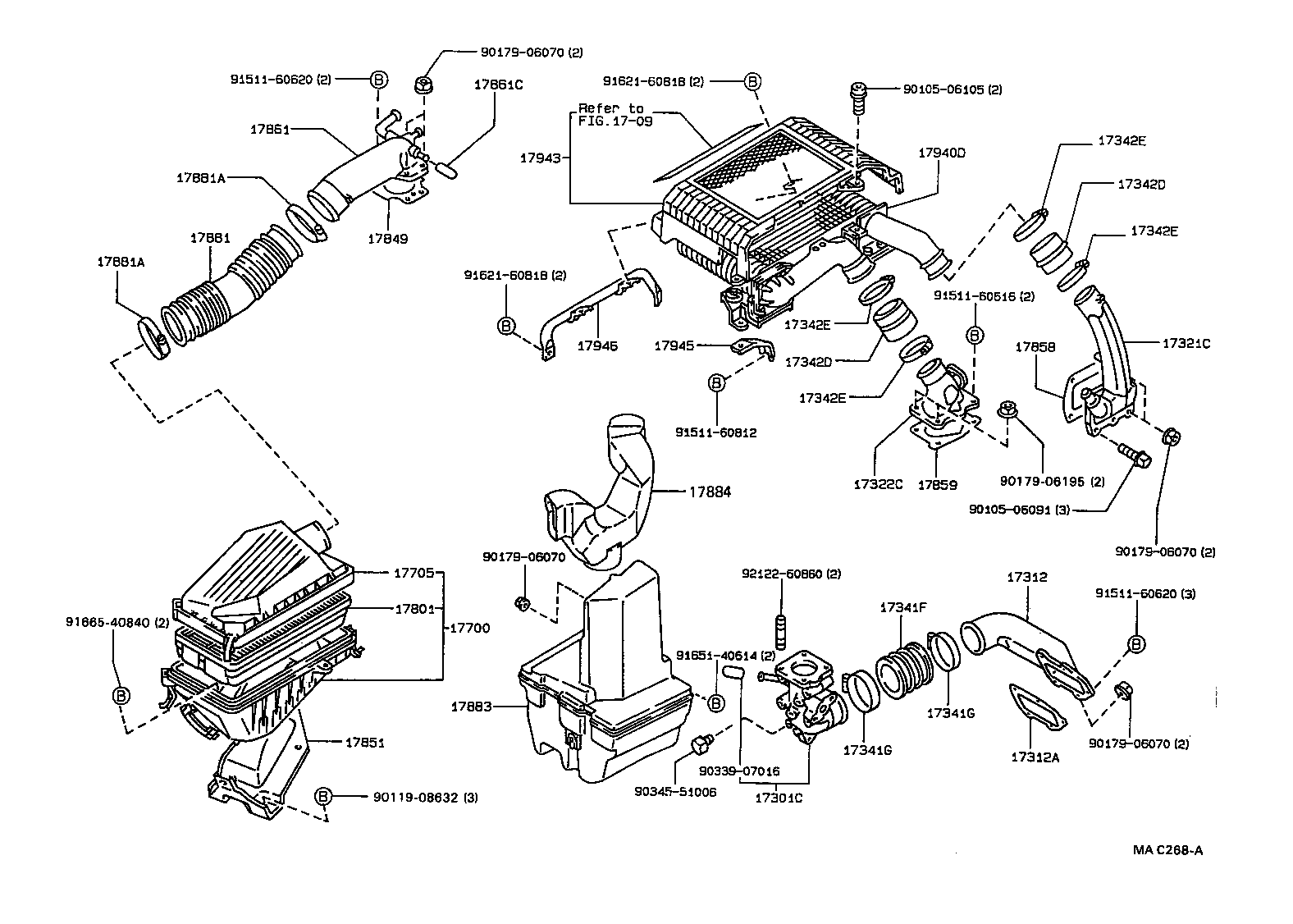

AIR CLEANER

(8905- )4AGZE

 SPRINTER TRUENO |  AIR CLEANER ** Refer Fig 17301C - DUCT SUB-ASSY, AIR INLET, NO.1 17312 - DUCT, AIR INLET, NO.2 17312A - GASKET, AIR INLET DUCT, NO.2 17321C - DUCT, AIR OUTLET, NO.1 17322C - DUCT, AIR OUTLET, NO.2 17341F - HOSE, AIR, NO.1 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17342D - HOSE, AIR, NO.2 17342D - HOSE, AIR, NO.2 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17849 - GASKET, INTAKE AIR CONNECTOR 17851 - BRACKET, AIR CLEANER SUPPORT 17858 - GASKET, AIR OUTLET DUCT, NO.1 17859 - GASKET, AIR OUTLET DUCT, NO.2 17861 - CONNECTOR, INTAKE AIR 17861C - CAP(FOR INTAKE AIR CONNECTOR) 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17883 - HOSE, AIR CLEANER, NO.3 17884 - HOSE, AIR CLEANER, NO.4 17940D - INTERCOOLER ASSY 17943 - PROTECTOR, INTERCOOLER 17945 - BRACKET, INTERCOOLER SUPPORT 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
