TOYOTA ARISTO UZS143-BEPZK / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

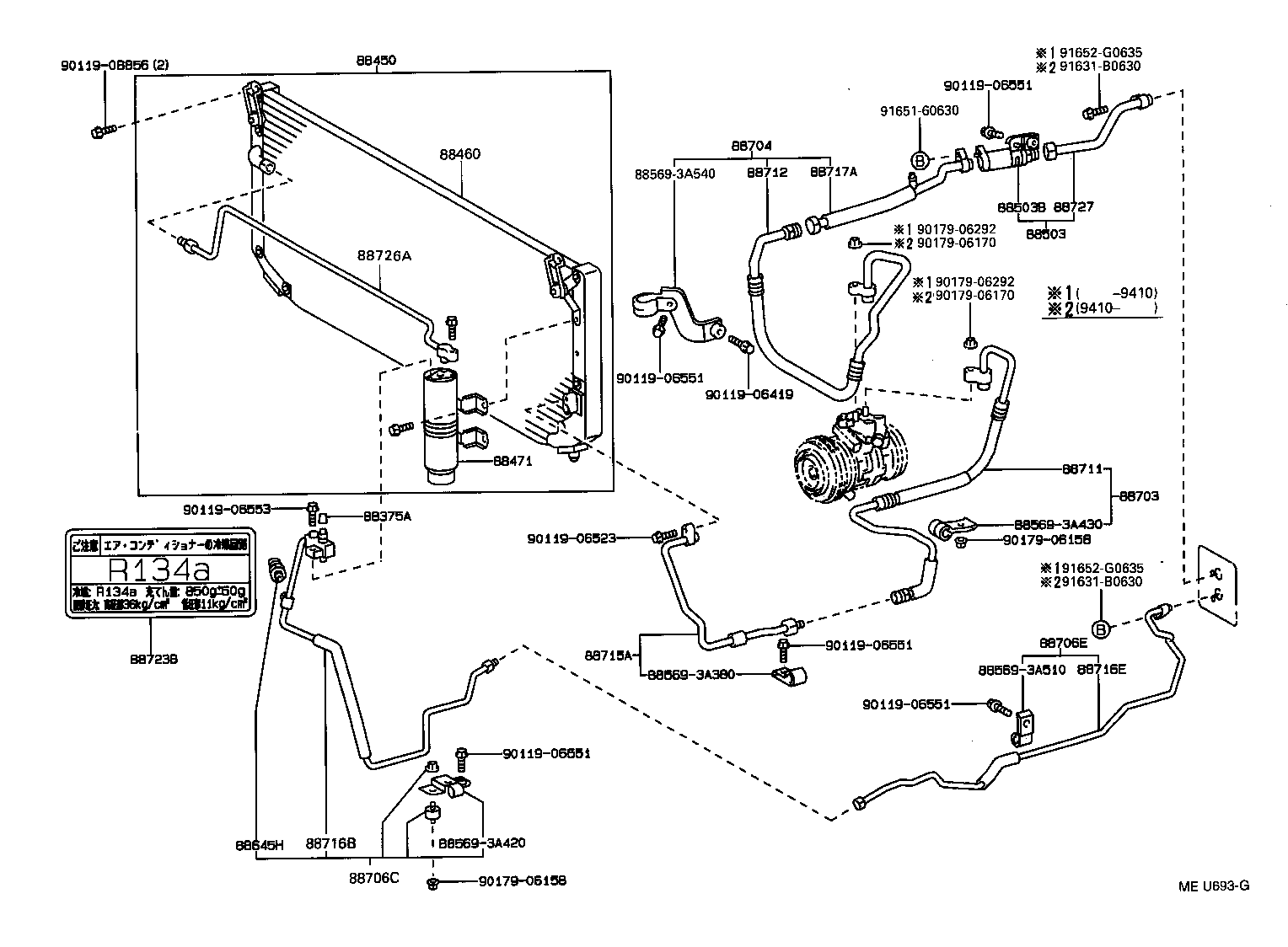

HEATING AIR CONDITIONING COOLER PIPING

(9210-9708)UZS143

ARISTO | HEATING AIR CONDITIONING COOLER PIPING 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88450 - CONDENSER ASSY, W/RECEIVER 88460 - CONDENSER ASSY, COOLER 88471 - TANK, RECEIVER AIR CONDITIONER 88503 - REGULATOR ASSY, PRESSURE 88503B - REGULATOR SUB-ASSY, PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88645H - SWITCH, PRESSURE NO.1 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88706C - TUBE SUB-ASSY, LIQUID, C 88706E - TUBE SUB-ASSY, LIQUID, E 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88723B - LABEL, COOLER SERVICE CAUTION 88726A - PIPE, COOLER REFRIGERANT LIQUID, A 88727 - TUBE, SUCTION, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
