TOYOTA HILUX LN131V-RKMSS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

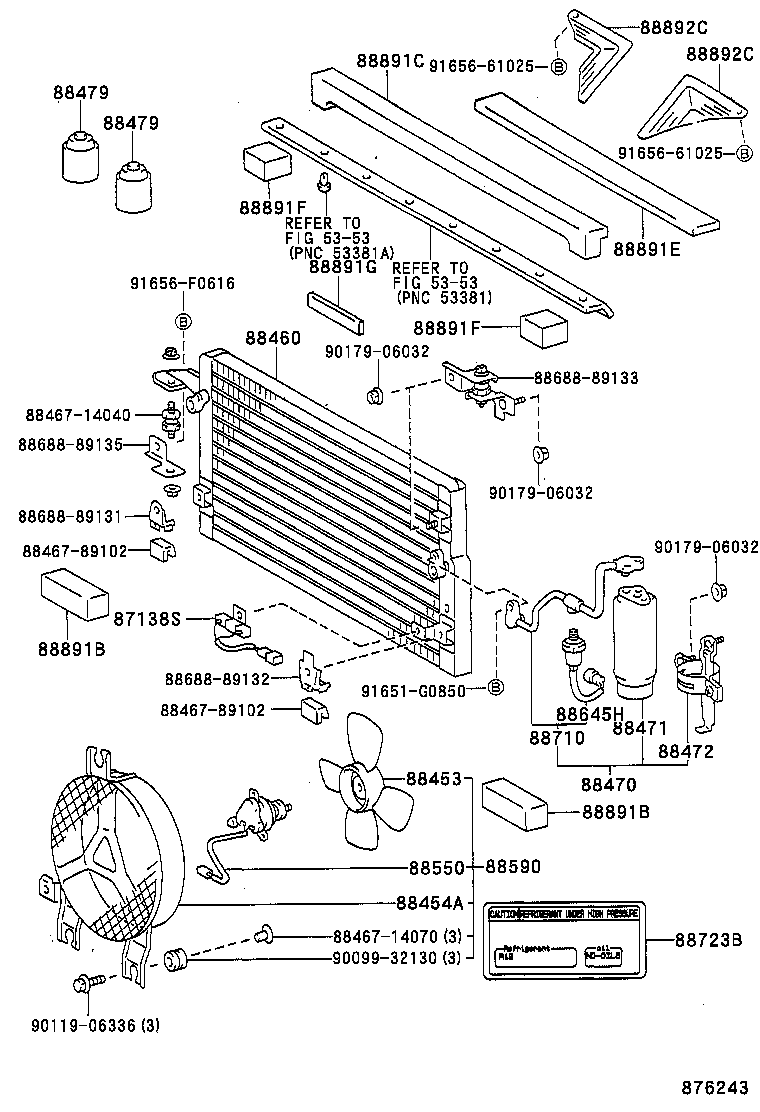

ﾌﾞﾛﾜ ASSY,ｺﾝﾃﾞﾝｻ & ﾚｼ-ﾊﾞ ILLUST NO. 1 OF 3(8904-9008)LN13#,YN130 ; (9008-9108)VZN130 ; (90

HILUX | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 87138S - RESISTOR, BLOWER 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER ** Std Part ** Std Part ** Std Part ** Std Part 88470 - RECEIVER & DRYER ASSY, COOLER 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88590 - BLOWER ASSY, W/SHROUD 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part ** Std Part 88710 - TUBE ASSY, AIRCONDITIONER 88723B - LABEL, COOLER SERVICE CAUTION 88891B - PACKING B (FOR COOLER) 88891B - PACKING B (FOR COOLER) 88891C - PACKING C (FOR COOLER) 88891E - PACKING E (FOR COOLER) 88891F - PACKING F (FOR COOLER) 88891F - PACKING F (FOR COOLER) 88891G - PACKING G (FOR COOLER) 88892C - PLATE, CONDENSER, NO.1 88892C - PLATE, CONDENSER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
